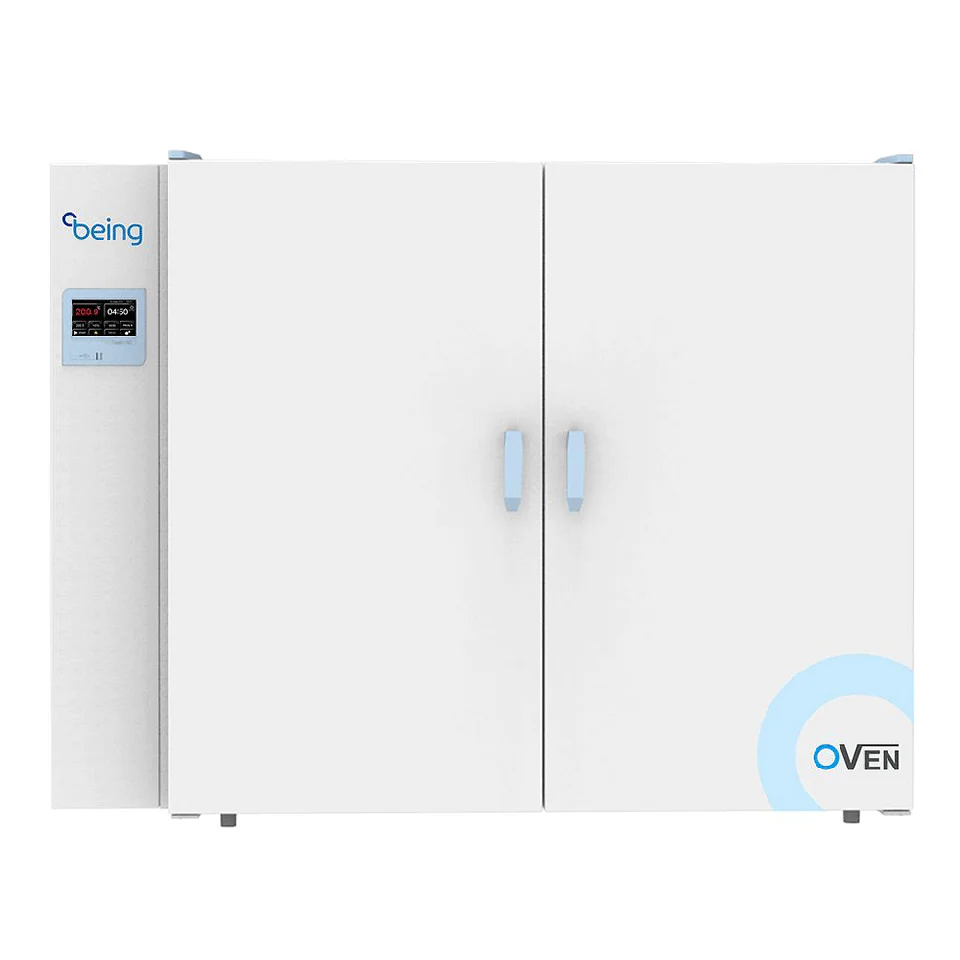

BEING BOF-400T Forced-Air Drying Oven – 400 L (14.1 cu ft) Laboratory Oven
BEING BOF-400T Forced-Air Drying Oven, 400 L (14.1 cu ft) chamber capacity — designed for large-volume drying, sterilization, curing, sample preparation, or batch processing. Utilizes fan-driven mechanical convection to ensure uniform, stable heat circulation throughout the chamber. Temperature range from ambient +10 °C up to 300 °C, controlled by a PID touchscreen controller for accurate, repeatable performance. The interior chamber is corrosion-resistant stainless steel with rounded inner corners for easy cleaning and durability. Includes 3 adjustable stainless-steel shelves (expandable up to 16), each shelf supporting up to 20 kg. Chamber and controls tested — heating, fan operation, temperature control, and safety systems all functional. Oven features airtight door seal, silicone gasket, and adjustable exhaust vent for ventilation control.
Specifications
| Spec | Value |
|---|---|
| Chamber Volume | 400 L (14.1 cu ft) |
| Temperature Range | Ambient +10 °C to 300 °C (Ambient +18 °F to 572 °F) |
| Temperature Stability | ±0.5 °C |
| Temperature Uniformity (at 100 °C) | ±3.5 °C |
| Heating Rate to 100 °C | ~40 minutes |
| Standard Shelves (Incl.) / Max Shelves | 3 / up to 16 shelves |
| Max Load per Shelf | 20 kg (≈ 44.1 lb) |
| Internal Dimensions (WxHxD) | 1000 × 800 × 500 mm (39.3″ × 31.4″ × 19.6″) |
| External Dimensions (WxHxD) | 1285 × 1060 × 750 mm (50.6″ × 41.7″ × 29.6″) |
| Power Consumption / Electrical Requirement | 3200 W, 220–240 V AC, 50/60 Hz, 1-phase |
| Net Weight | ~210 kg (≈ 463 lb) |
| Controller & Timer | Digital PID touchscreen; timer 00:01 – 99:59 (hh:mm) |
| Convection Type | Mechanical (forced-air) fan convection for even heat distribution |
Features
-
Forced-air mechanical convection — ensures rapid, uniform heat distribution and consistent temperature throughout chamber for reliable drying, curing, sterilization, or batch processing.
-
Large 400 L capacity — suitable for large sample loads, bulk glassware, or high-throughput batch processing.
-

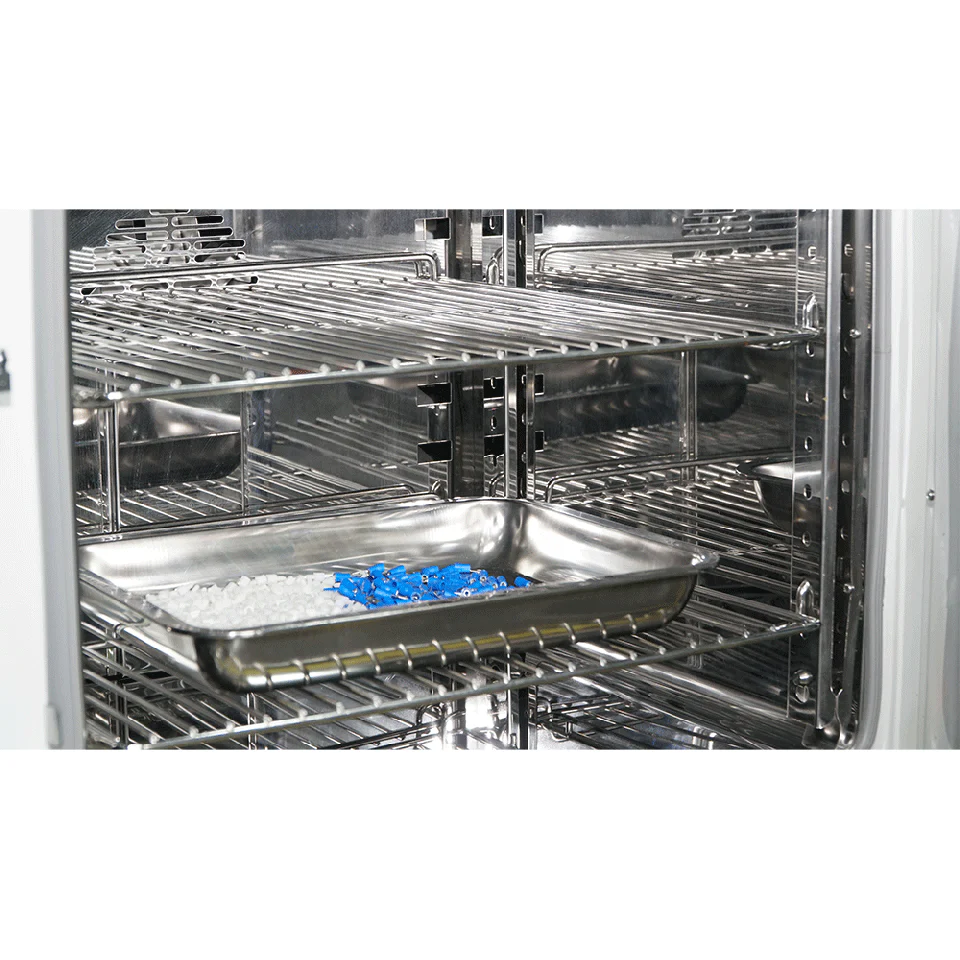

Adjustable shelving — up to 16 shelves for flexible arrangement of labware or samples; each shelf rated to 20 kg.
-

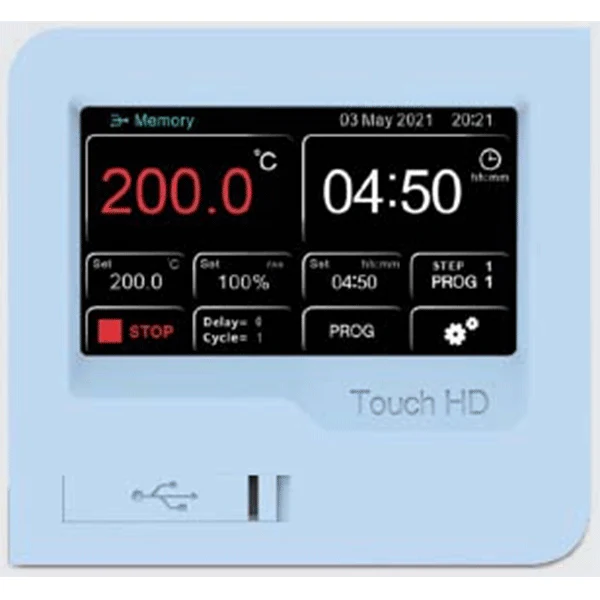

Precision PID temperature control with touchscreen interface — accurate temperature settings and stable maintenance over long runs.
-
Temperature stability ±0.5 °C and uniformity ±3.5 °C at 100 °C — ensures reproducible results and uniform processing.
-
Stainless-steel chamber with sealed door and silicone gasket — durable, easy to clean, and thermally insulated to maintain stable internal temperature.
-
Safety & alarm features — over-temperature protection, temperature deviation alarm, over-current protection, and auto-restart after power loss to safeguard samples and equipment.
-
Adjustable exhaust/vent port — allows control over airflow and humidity during processes that require venting.
-
Wide application range — ideal for drying, sterilization, curing, heat treatment, glassware drying, batch sample prep, and industrial lab use.
This product ships directly from Being, ensuring fast delivery, proper handling, and factory quality. When you purchase Being, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
