BEING BON-200T Natural Convection Drying Oven – 211 L Lab Oven
BEING BON-200T Natural Gravity (convection) Oven — 211 L (7.5 cu ft) chamber volume. Temperature range: ambient +10 °C up to 300 °C. Constructed with a corrosion-resistant, mirror-polished stainless-steel chamber. Equipped with a digital PID touchscreen controller, programmable timer (1–5999 min), and stable temperature control. Comes with 2 adjustable shelves (expandable up to 16). Max shelf load: 20 kg per shelf. Internal chamber dimensions: 25.6″ × 25.6″ × 19.6″; External size: 37.0″ × 35.8″ × 25.9″. Oven tested; heating, controls and door seal function properly — uniform natural-convection heating ideal for drying, sterilization, curing, storage, and sample preparation.
Specifications
| Spec | Value |
|---|---|
| Chamber Volume | 211 L (7.5 cu ft) |
| Temperature Range | Ambient +10 °C to 300 °C (Ambient +18 °F to 572 °F) |
| Temperature Stability | ±0.5 °C (steady-state) |
| Uniformity at 100 °C | ±3.0 °C |
| Shelves (Std / Max) | 2 included, expandable up to 16 shelves |
| Max Load / Shelf | 20 kg (≈ 44 lb) per shelf |
| Internal Dimensions (W×H×D) | 25.6″ × 25.6″ × 19.6″ (650 × 650 × 500 mm) |
| External Dimensions (W×H×D) | 37.0″ × 35.8″ × 25.9″ (940 × 910 × 658 mm) |
| Power / Electrical | 2250 W — 240 V, 50/60 Hz (single-phase) |
| Net Weight | ≈ 103 kg (227.1 lb) |
| Timer Range | 1–5999 min (programmable) |
Features
-
Natural-convection heating — provides gentle, uniform heat distribution without fan-induced turbulence.
-
Digital PID touchscreen controller — precise, stable temperature control and easy operation.
-

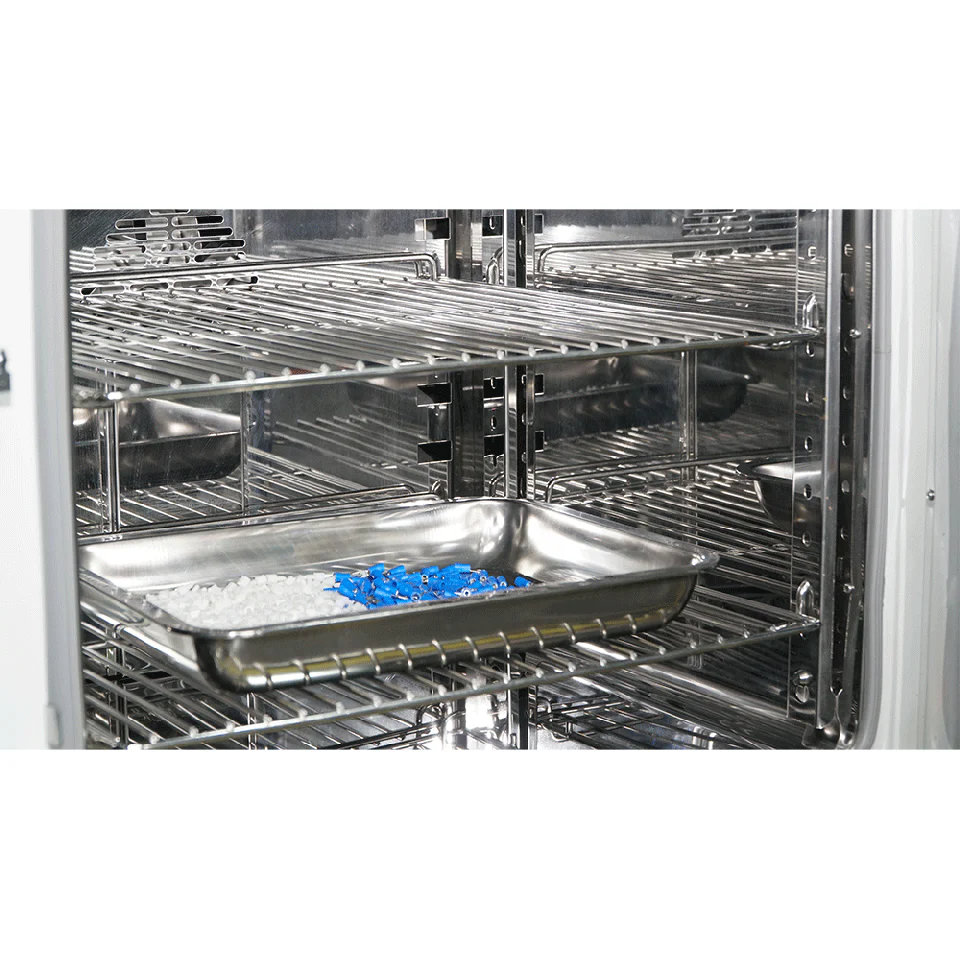

Corrosion-resistant stainless steel interior with mirror-polish finish and rounded corners — durable and easy to clean.
-
Adjustable shelving (2 standard, expandable up to 16) — flexible workspace for various sample sizes.
-
Max shelf loading 20 kg — can accommodate heavy glassware or sample loads.
-
Safety & convenience features: silicone-seal door gasket, over-temperature protection, over-current protection, temperature deviation alarm, auto-start on power return.
-
Uniformity & stability — ±3 °C uniformity at 100 °C; ±0.5 °C stability ensures consistent, repeatable results.
-
Suitable for a wide range of lab tasks: drying, sterilizing, curing, heat-treating samples, glassware, powders, storage, etc.
This product ships directly from Being, ensuring fast delivery, proper handling, and factory quality. When you purchase Being, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
