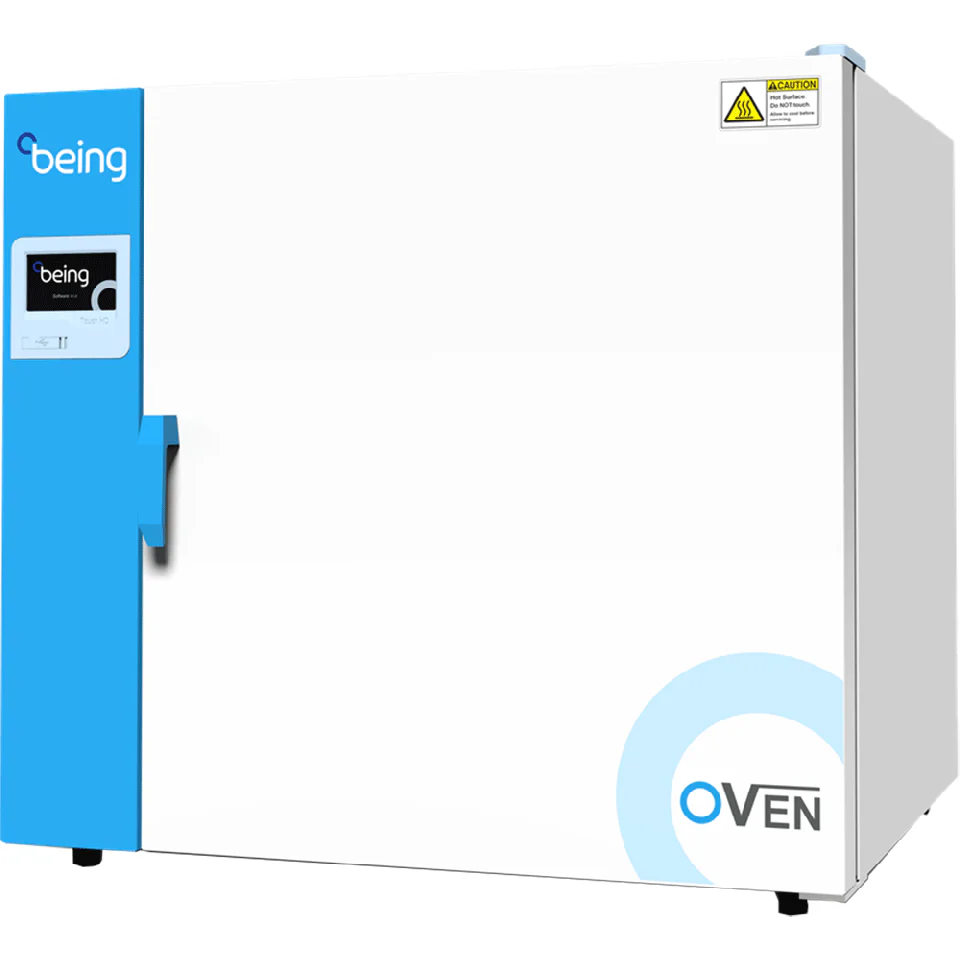

BEING BOF-200T Forced-Air Drying Oven – 211 L (7.5 cu ft) Laboratory Oven
BEING BOF-200T Forced-Air Drying Oven with 211 L (7.5 cu ft) chamber capacity — suitable for large-volume lab drying, sterilization, curing, and sample preparation. It uses fan-driven mechanical convection to ensure even, uniform airflow and consistent temperature distribution. Temperature range covers ambient +10 °C up to 300 °C. The internal chamber is made from corrosion-resistant stainless steel with a silicone-sealed door for tight insulation. Includes adjustable shelving (3 standard, expandable up to 16 shelves) with a maximum load of 20 kg per shelf. Equipped with a digital PID touchscreen controller, programmable timer, and multiple safety devices (over-temperature protection, temperature deviation alarm, over-current protection). Oven tested: heating, fan, control panel, and door seal all function correctly.
Specifications
| Spec | Value |
|---|---|
| Chamber Volume | 211 L (7.5 cu ft)Â |
| Temperature Range | Ambient +10 °C to 300 °C (≈ 572 °F) |
| Temperature Stability | ±0.5 °C (at set temperature) |
| Temperature Uniformity | ±3.0 °C at 100 °C |
| Power Consumption / Electrical | 2500 W, 220–240 V AC (single-phase), 11.4 A |

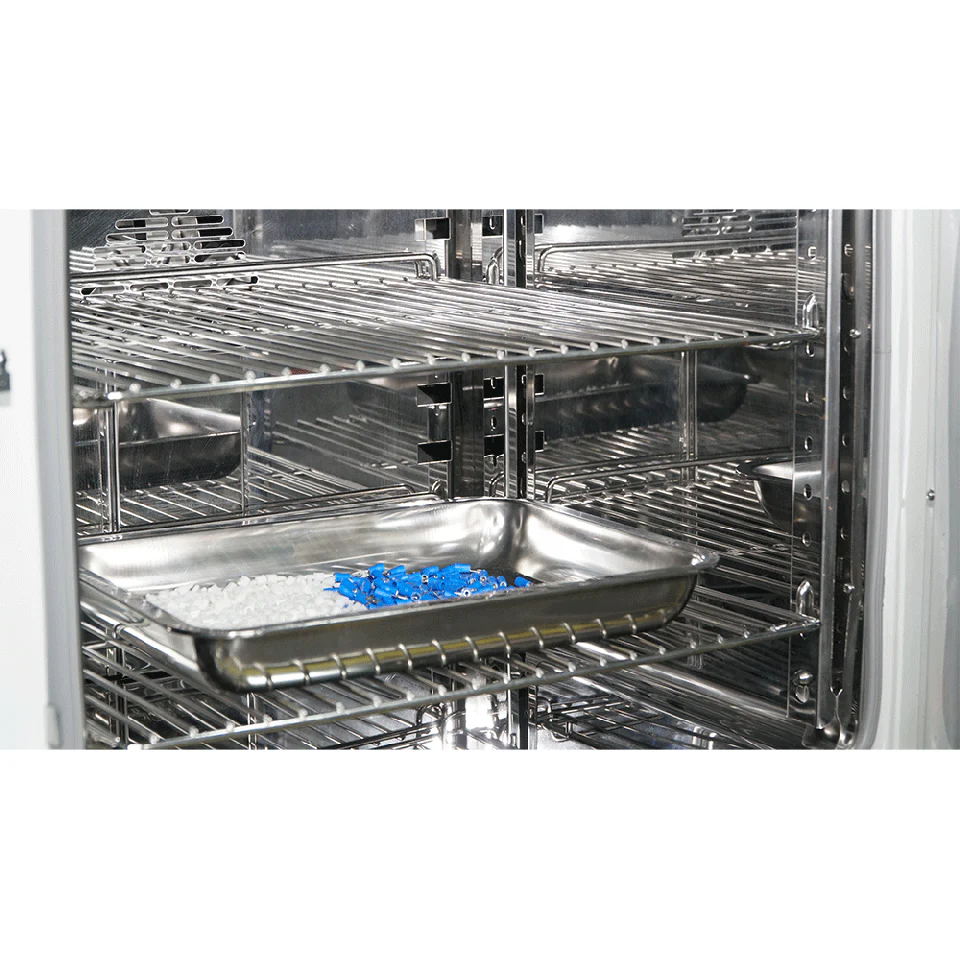

| Shelves (Standard / Max) | 3 included, expandable up to 16 shelves |
| Max Load per Shelf | 20 kg (≈ 44.1 lb) |
| Internal Dimensions (W × H × D) | 25.6″ × 25.6″ × 19.6″ (≈ 650 × 650 × 500 mm) |
| External Dimensions (W × H × D) | 37.0″ × 35.8″ × 25.9″ (≈ 940 × 910 × 658 mm) |
| Net Weight | ~112 kg (≈ 247 lb) |

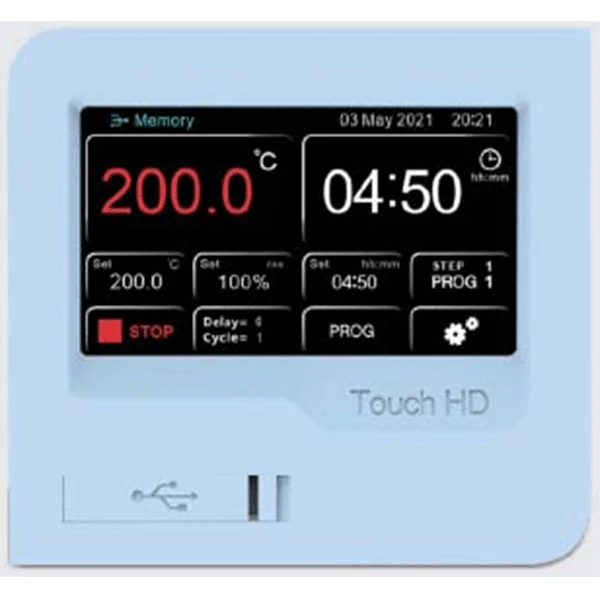

| Timer / Controller | Digital PID controller, timer 1–5999 min, touchscreen interface, programmable cycles (time, temperature, fan speed) |
| Heating Method | Forced-air (fan) convection for even heat distribution |
Â
Features
-
Forced-air convection ensures fast, uniform heating — ideal for drying, sterilizing, curing, and heat-treating samples.Â
-
Digital PID touchscreen controller — precise temperature control, programmable heating cycles, and user-friendly interface.Â
-
Large capacity (211 L) — spacious chamber to accommodate multiple glassware batches, large sample loads, or bulk drying tasks.
-
Adjustable shelving (up to 16 shelves) — flexible configuration to suit various labware sizes and maximize throughput.
-
High shelf load capacity (20 kg/shelf) — supports heavy glassware, metal parts, or bulk samples without deformation.
-
Stainless-steel corrosion-resistant chamber & silicone-sealed door — ensures durability, easy cleaning, and good thermal insulation.
-
Safety & reliability features — over-temperature protection, temperature deviation alarm, over-current protection, and auto-restart after power loss.
-
Wide temperature range (up to 300 °C) — suitable for a variety of lab applications: drying, sterilization, curing, heat-treatment, sample storage, etc.
This product ships directly from Being, ensuring fast delivery, proper handling, and factory quality. When you purchase Being, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
Product Brochure
