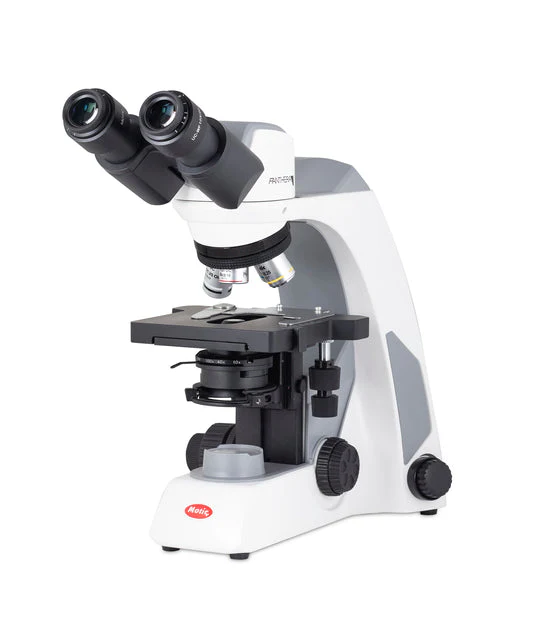

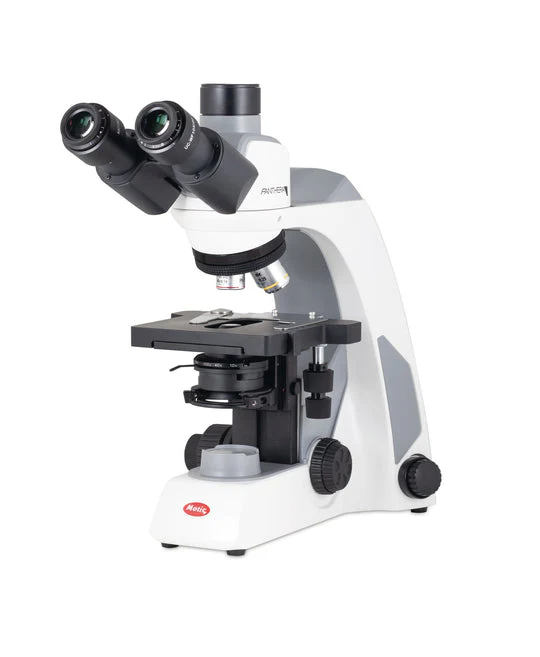

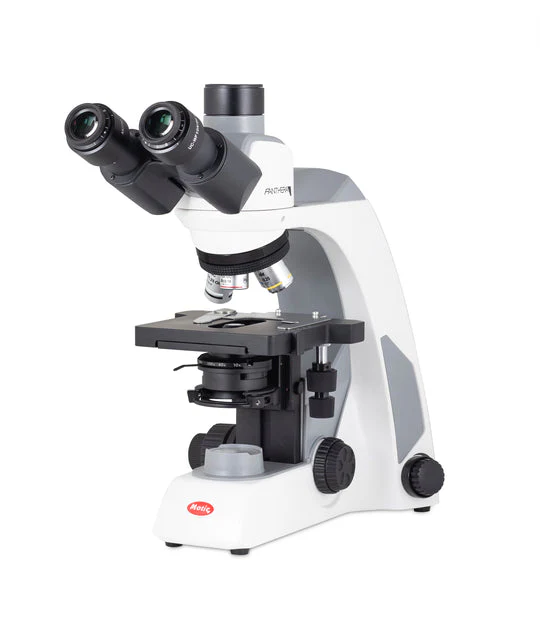

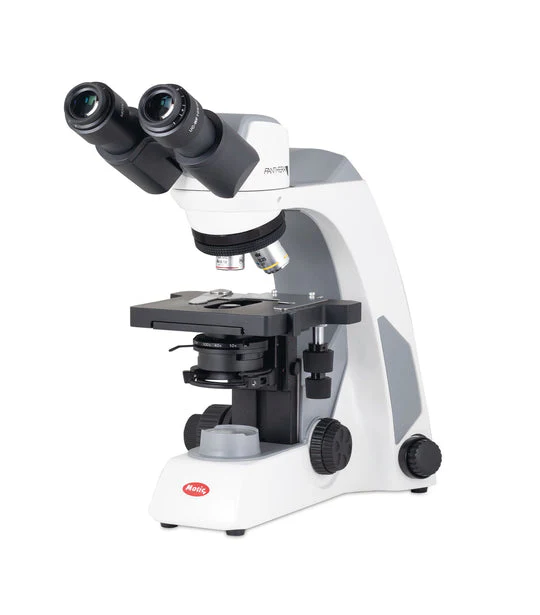

Motic PANTHERA E2 Microscope

Product image 1
1 / 4

Motic PANTHERA E2 Microscope

This new generation of light microscopes justifies every investment. Reliable, robust construction, modern design, and equipped with smart features for the ambitious work in education areas or small life science labs. A Fixed Koehler setup with 1W LED illumination power and LED intensity indicator guarantees fast access to convincing imaging results.

The Panthera E2 features new CCIS© Plan Ultra Contrast objectives with stunning image quality in the Bright field, Phase contrast, Darkfield, and Polarization.

    Specifications

    Model Panthera E2 Binocular Panthera E2 Binocular (without 100X) Panthera E2 Trinocular Panthera E2 Trinocular (without 100X)
    Optical system  Color Corrected Infinity Optical System (CCIS®) Color Corrected Infinity Optical System (CCIS®) Color Corrected Infinity Optical System (CCIS®) Color Corrected Infinity Optical System (CCIS®)
    Observation tube  Binocular head, Siedentopf type, 360° swiveling Binocular head, Siedentopf type, 360° swiveling Trinocular head, Siedentopf type, 360° swiveling Trinocular head, Siedentopf type, 360° swiveling
    Inclination  25° inclined, 360° rotating (storage saving), 360° swivelling 25° inclined, 360° rotating (storage saving), 360° swivelling 25° inclined, 360° rotating (storage saving), 360° swivelling 25° inclined, 360° rotating (storage saving), 360° swivelling
    Trinocular light split      Fixed 50:50 Fixed 50:50
    Interpupillary distance  48-75mm 48-75mm 48-75mm 48-75mm
    Diopter adjustment  On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter
    Eyepieces  Widefield UC-WF10X/20mm with diopter adjustment  Widefield UC-WF10X/20mm with diopter adjustment  Widefield UC-WF10X/20mm with diopter adjustment  Widefield UC-WF10X/20mm with diopter adjustment
    Nosepiece  Reversed quadruple  Reversed quadruple  Reversed quadruple  Reversed quadruple
    Objective classification  CCIS® UC Plan Achromatic (Pb free) CCIS® UC Plan Achromatic (Pb free) CCIS® UC Plan Achromatic (Pb free) CCIS® UC Plan Achromatic (Pb free)
    Objectives  4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm) 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm)
    Objective mounting thread  W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard)
    Stand type  Upright  Upright  Upright  Upright
    Stage  Mechanical stage with built-in low position rackless coaxial stage control and sample holder Mechanical stage with built-in low position rackless coaxial stage control and sample holder Mechanical stage with built-in low position rackless coaxial stage control and sample holder Mechanical stage with built-in low position rackless coaxial stage control and sample holder
    Stage size  140x135mm  140x135mm  140x135mm  140x135mm
    Travel range X&Y    75x40mm 75x40mm    75x40mm 75x40mm
    Condenser  Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders  Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders  Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders  Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
    Diaphragm  Iris diaphragm  Iris diaphragm  Iris diaphragm  Iris diaphragm
    Focus mechanism  Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment
    Fine focus precision  2μm 2μm 2μm 2μm
    Focusing stroke  25mm 25mm 25mm 25mm
    Upper limit stop  Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable
    Filter holder  On top of the illuminator On top of the illuminator On top of the illuminator On top of the illuminator
    Transmitted illumination  Fixed Koehler LED 1W with intensity control Fixed Koehler LED 1W with intensity control Fixed Koehler LED 1W with intensity control Fixed Koehler LED 1W with intensity control
    Illumination features  Nosepiece LED light intensity indicator Nosepiece LED light intensity indicator Nosepiece LED light intensity indicator Nosepiece LED light intensity indicator
    Transformer  Internal  Internal  Internal  Internal
    Power supply  110-240V (CE), USB 2.0 for battery pack 110-240V (CE), USB 2.0 for battery pack 110-240V (CE), USB 2.0 for battery pack 110-240V (CE), USB 2.0 for battery pack
    Other features  USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power
    Accessories included  Dust cover, power cord, Allen key Dust cover, power cord, Allen key Dust cover, power cord, Allen key Dust cover, power cord, Allen key
    Dimensions LxWxH  282x210x396mm  282x210x396mm  282x210x396mm  282x210x396mm
    Net weight  7.5kg 7.5kg 7.5kg 7.5kg

    Select Head
    From $411.28

    Original: $1,175.08

    -65%
    Motic PANTHERA E2 Microscope—

    $1,175.08

    $411.28
