| Model |

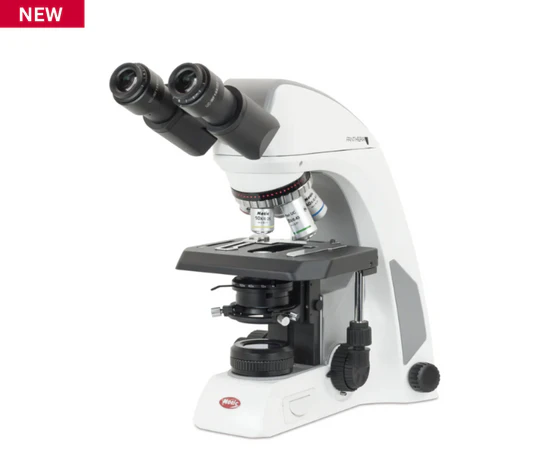

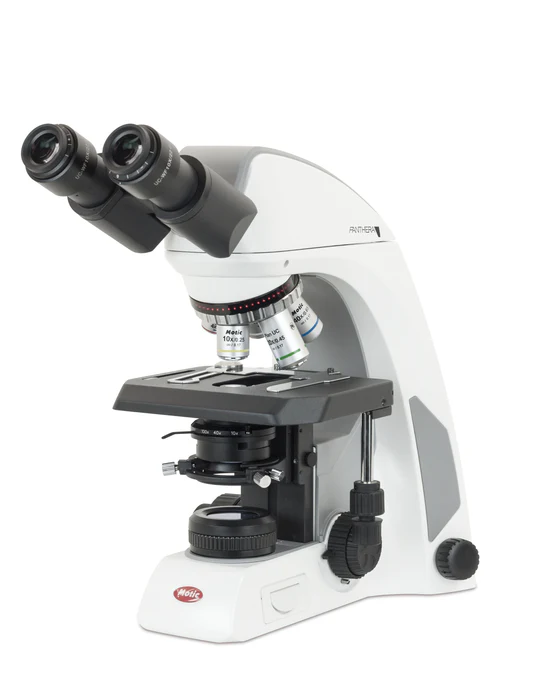

Panthera Cloud |
| Observation tube |
Binocular head, Siedentopf type 25°, 360° swiveling |
| Optical system |
Colour Corrected Infinity Optical System (CCIS®) |
| Sensor Type |
CMOS |
| Sensor Size |
1/2.5" |
| Capture Resolution Info |
8MP |
| Condenser |
Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Darkfield |
Optional slider/turret |
| Data transfer |
Wi-Fi, HDMI, Ethernet |
| Diaphragm |
Iris diaphragm |
| Diopter adjustment |
On both eyepieces, +/- 4 diopter |
| Eyepieces |
Widefield UC-WF10X/22mm with diopter adjustment |
| Filter holder |
On top of the illuminator with fixing cap |
| Fine focus precision |
2µm |
| Focus mechanism |
Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke |
25mm |
| Illumination features |
Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator |
| Illumination interchangeability |
Halogen/LED and LED color temperature interchangeability |
| Inclination |
25° inclined, 360° swivelling |
| Interpupillary distance |
48-75mm |
| Live display mode through Ethernet |
1280x720, 1920x1080 pixels (Full HD) |
| Live display mode through HDMI |
1920x1080 (Full HD) |
| Live display mode through Wi-Fi |
1920x1080 (Full HD) |
| Nosepiece |
Reversed quintuple, coded |
| Objective classification |
CCIS® UC Plan Achromatic (Pb free), DIN |
| Objective mounting thread |
W 4/5"x1/36" (RMS standard) |
| Objectives |
4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Other features |
USB 2.0 for external Devices (x2) |
| Phase contrast |
Optional slider/turret |
| Polarization |
Optional add-on |
| Stage |
Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size |
185x145mm |
| Stand type |
Upright |
| Standard contrast technique |
Brightfield |
| Transmitted illumination |
Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Travel range X&Y |
75x50mm |
| Upper limit stop |
Upper limit stop preset but adjustable |
| Software |
ImagingOnDevice System (Panthera App embeded) |
| Transformer |
Internal |
| Power supply |
110-240V (CE) |
| Accessories included |
Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide |
| Dimensions LxWxH |
282x210x394mm |
| Weight Net |
8.8kg |
