Motic MOTICAM A2 Microscope Camera

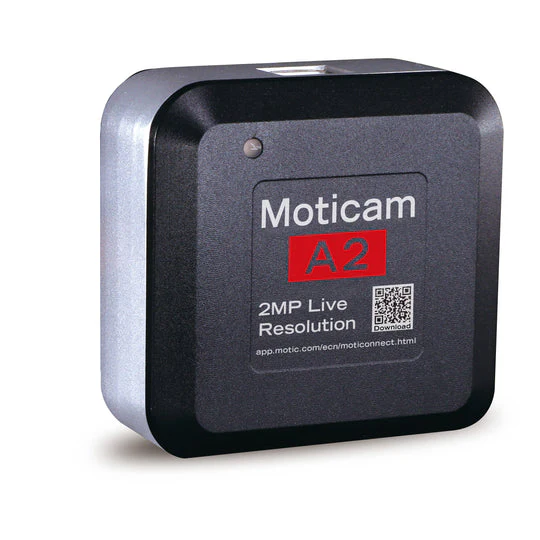

Product image 1

Motic MOTICAM A2 Microscope Camera

If you are after Full HD resolution, the Moticam A2 delivers 1920x1080 pixels at up to 30 frames per second. The built-in 1/3” sCMOS sensor provides clear and crisp imaging for a variety of microscopy applications.

    Specifications

    Camera

    A1

    A2

    A5

    A8

    A16
    Sensor Type

    sCMOS
    Sensor Size

    1 / 3.1"

    1 / 3.1"

    1 / 2.8"

    1 / 3"

    1 / 2.3"
    Capture Resolution

    1MP

    2MP

    5MP

    8MP

    16MP
    Live Display Modes

    1280x720,
    1024x768

    1920x1080, 1280x720

    2592x1944,

    2048x1536,

    1920x1080

    3840x2160, 1920x1080

    4608x3456,

    3263x2448,

    1920x1080
    Pixel Size

    4.1x4.1 micron

    2.7x2.7 micron

    2x2 micron

    1.34x1.34 micron

    1.34x1.34 micron
    Max. FPS

    30fps @ 1280x720

    30fps @ 1024x768

    30fps @ 1920x1080

    30fps @ 1280x720

    30fps @ 2592x1944

    30fps @ 1920x1080

    15fps @ 3840x2160

    30fps @ 1920x1080

    15fps @ 4608x3456

    30fps @ 1920x1080
    Lens Mount

    C-Mount
    Additional Support

    TWAIN, SDK, DS Driver
    Operating System

    Windows 10 or higher, OSX10.9 or higher
    Software

    MotiConnect available for free download. Free Updates included.
    Included Accessories

    Focusable Lens, 30mm & 38mm Eyepiece Adapters, Calibration Slide, Macro Viewing Tube, C-Ring, USB Cable, Dust Cap

    $373.13
    Motic MOTICAM A2 Microscope Camera—
    $373.13

    Product Information

    Shipping & Returns

    Description

    If you are after Full HD resolution, the Moticam A2 delivers 1920x1080 pixels at up to 30 frames per second. The built-in 1/3” sCMOS sensor provides clear and crisp imaging for a variety of microscopy applications.

      Specifications

      Camera

      A1

      A2

      A5

      A8

      A16
      Sensor Type

      sCMOS
      Sensor Size

      1 / 3.1"

      1 / 3.1"

      1 / 2.8"

      1 / 3"

      1 / 2.3"
      Capture Resolution

      1MP

      2MP

      5MP

      8MP

      16MP
      Live Display Modes

      1280x720,
      1024x768

      1920x1080, 1280x720

      2592x1944,

      2048x1536,

      1920x1080

      3840x2160, 1920x1080

      4608x3456,

      3263x2448,

      1920x1080
      Pixel Size

      4.1x4.1 micron

      2.7x2.7 micron

      2x2 micron

      1.34x1.34 micron

      1.34x1.34 micron
      Max. FPS

      30fps @ 1280x720

      30fps @ 1024x768

      30fps @ 1920x1080

      30fps @ 1280x720

      30fps @ 2592x1944

      30fps @ 1920x1080

      15fps @ 3840x2160

      30fps @ 1920x1080

      15fps @ 4608x3456

      30fps @ 1920x1080
      Lens Mount

      C-Mount
      Additional Support

      TWAIN, SDK, DS Driver
      Operating System

      Windows 10 or higher, OSX10.9 or higher
      Software

      MotiConnect available for free download. Free Updates included.
      Included Accessories

      Focusable Lens, 30mm & 38mm Eyepiece Adapters, Calibration Slide, Macro Viewing Tube, C-Ring, USB Cable, Dust Cap
