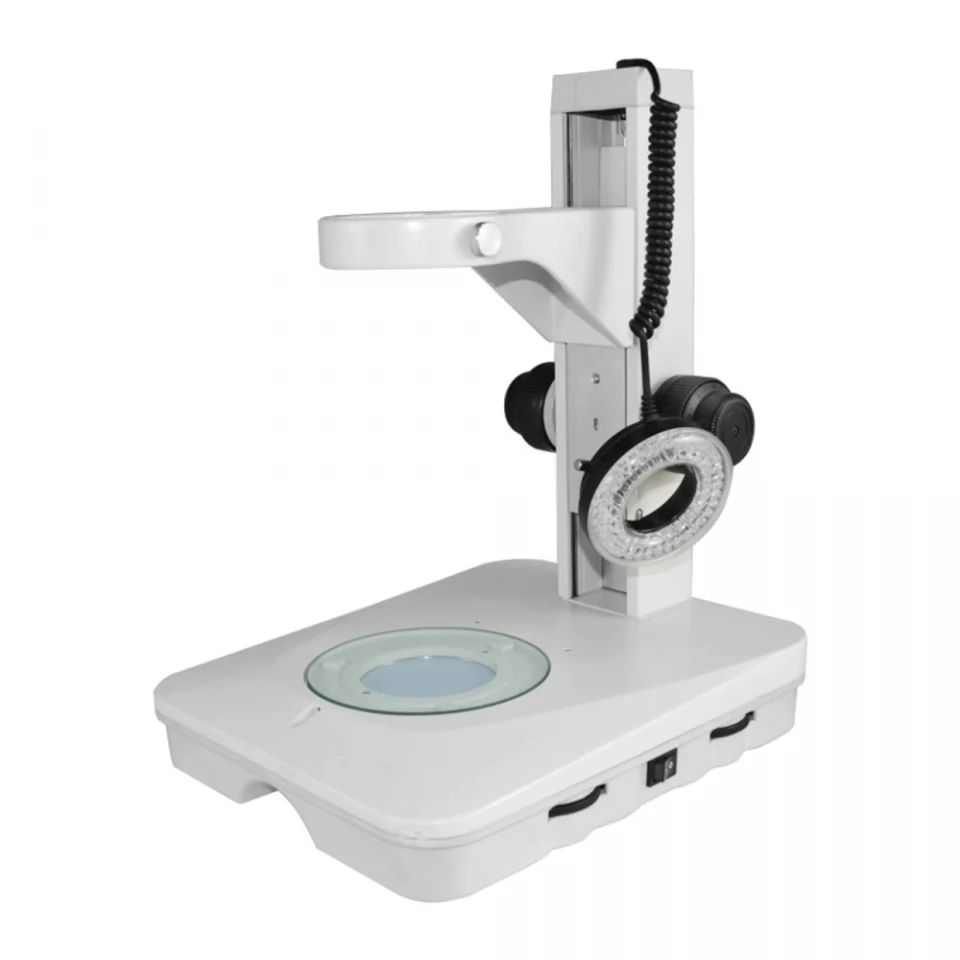

Munday Microscope Track Stand | 76mm Fine Focus Rack | LED Ring Light (Dimmable)
Munday Microscope Track Stand with a 76mm Fine Focus Rack and an LED Ring Light. Great microscope stand that fits most stereo microscopes.
Part No. ST04040301
Track Stand.
Dia. 76mm Scope Holder.
Track Length: 300mm.
Base Dimensions: 240x290x55mm.
Focus Distance: 104mm.
Clear Glass Plate.
Plate Size: Dia. 124x6mm.
Illumination Type: LED Dual Illuminated Light .
Top Illumination: Ring Light.
Input Voltage: AC 90-264V 50/60Hz.
Power Cord Connector Type: USA 3 Pins.
Specifications
| Stand Type | Track Stand |
| Holder Adapter Type | Dia. 76mm Scope Holder |
| Track Length | 300mm |
| Base Type | Illumination Base |
| Base Shape | Rectangle |
| Stand Throat Depth | 130mm |
| Base Dimensions | 240x290x55mm |
| Focus Mode | Manual |
| Coarse/Fine Focus Type | Coaxial Coarse/Fine Focus |
| Focus Distance | 104mm |
| Fine Focus Travel Distance | Same as Focus Distance |
| Coarse Focus Distance per Rotation | 40mm (1.575 in. ) |
| Fine Focus Distance per Rotation | 2mm |
| Fine Focus Minimum Scale | 10μm |
| Focusing Knob Tightness Adjustable | Tightness Adjustable |
| Illumination Type | LED Dual Illuminated Light |
| Top Illumination | Ring Light |
| Top Illumination Type | LED |
| Bottom Illumination Type | LED |
| Input Voltage | AC 90-264V 50/60Hz |
| Power Cord Connector Type | USA 3 Pins |
| Power Cable Length | 1.8m |
| Surface Treatment | Spray Paint |
| Material | Metal |
| Color | White |
| Net Weight | 3.94kg (8.69lbs) |
| Dimensions | 240x290x355mm (9.449x11.417x13.976 in. ) |
| 124x6mm Clear Glass Plate | |
| Plate Type | Clear Glass Plate |
| Plate Size | Dia. 124x6mm |
| Material | Clear Float Glass |
| Net Weight | 0.18kg (0.40lbs) |
| Applied Field | For ST04030201, ST04040201, ST0903 Series Track Stand |
