The Unitron Z730 Series with a 4.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications.

Featuring outstanding optics and a large field of view with a high depth of focus, the Z730 reduces sample handling times allowing for faster inspections and a more efficient work process.

The Z730 Series is available with a binocular (45° or 60° degree viewing angle), or with a trinocular (45° viewing angle) viewing head.

Specifications

• Available with Binocular viewing body with eyetubes inclined at 45°, Binocular viewing body with eyetubes inclined at 60°, or Trinocular viewing body with eyetubes inclined at 45°
• Widefield 10x/20mm focusing eyepieces
• 0.7x to 3.0x zoom magnification range
• 4.3:1 Zoom ratio
• Magnification range 7x to 30x (with 10x eyepieces)
• Interpupillary Distance Adjustment 52mm – 75mm
• 97mm working distance

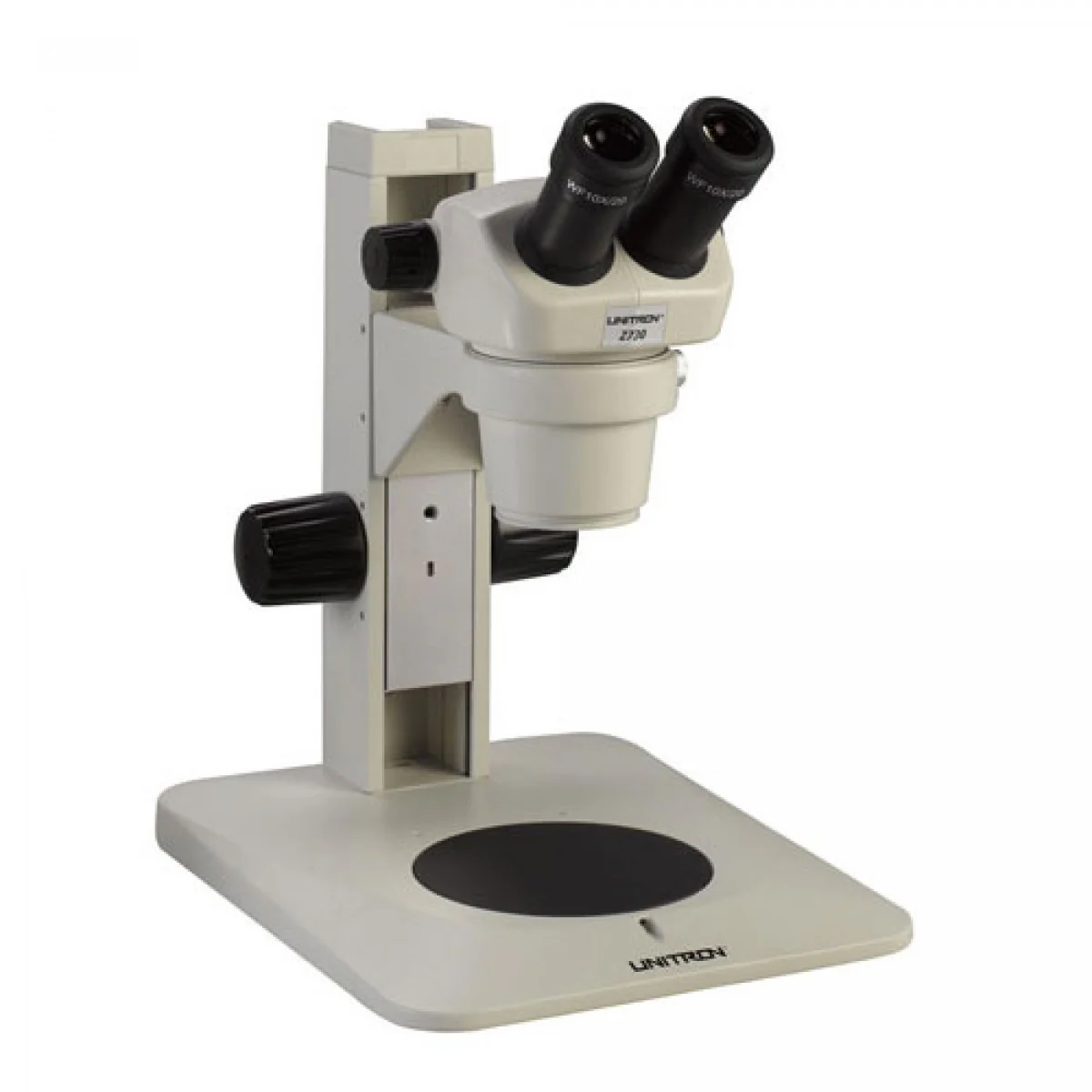

• Plain Focusing Stand with tension adjustment, 4” (100mm) of continuously smooth focus travel
• Black and white stage plate
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z730 series microscopes
• Shipping weight 14lbs.
