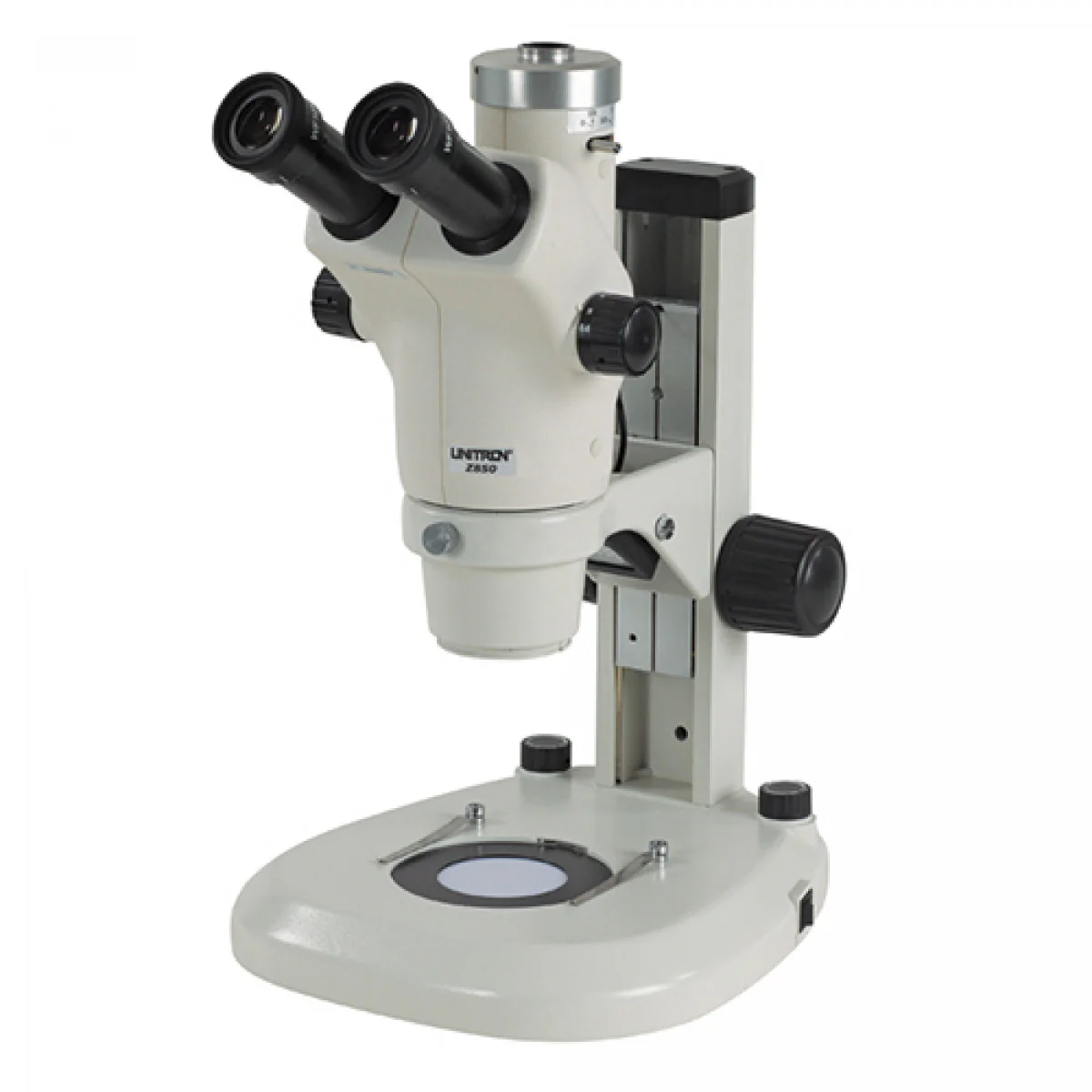

Trinocular High Resolution Zoom Stereo Microscope on Flex Arm Stand

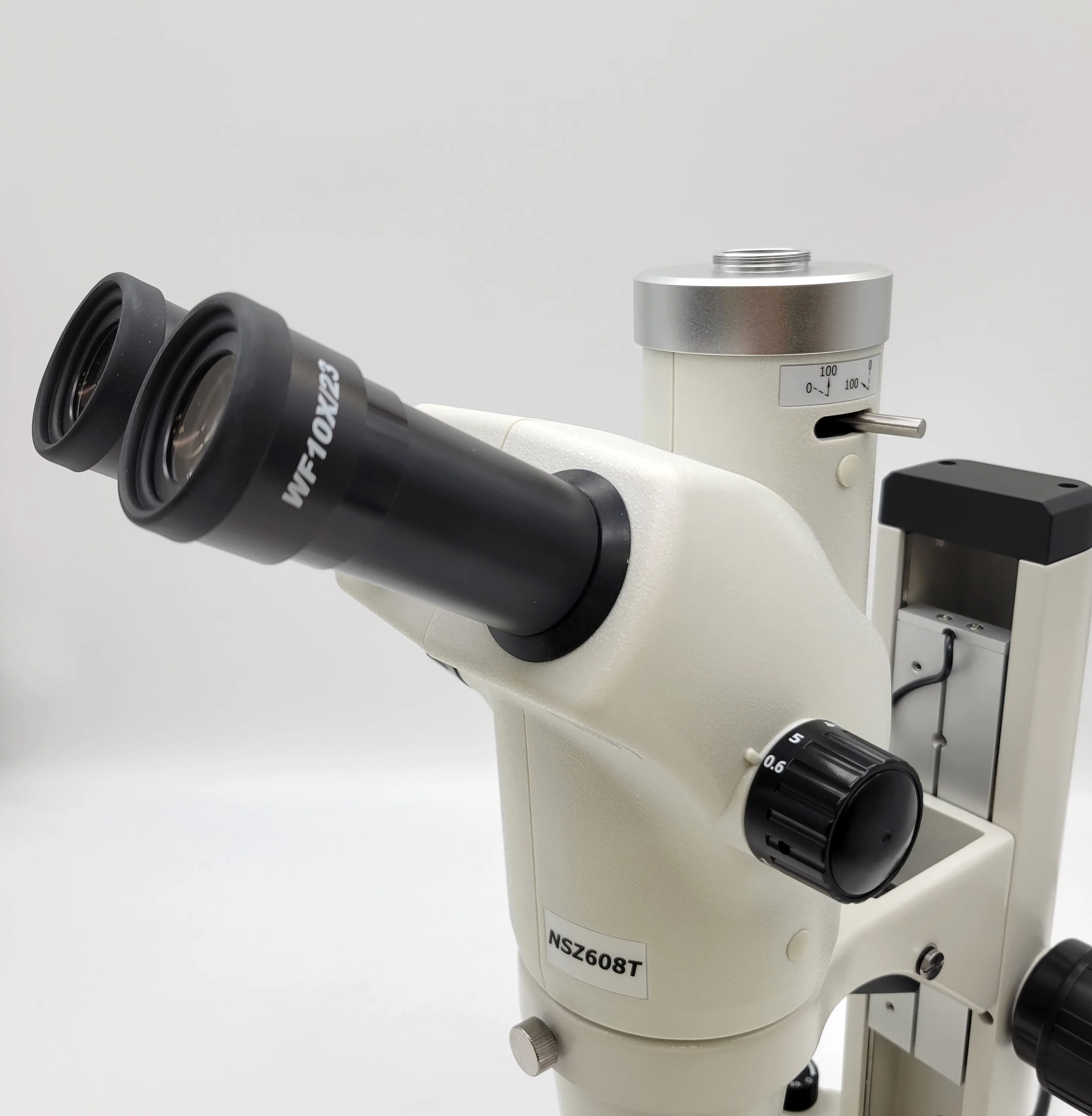

Trinocular viewing head, 0.6x to 5.0x zoom range, inclined at 30°,115 mm working distance,
interpupillary distance adj, 52-75mm, glass lens shield
WF 10x eyepieces with built-in diopter adjustment (paired) 23mm field of view, 0/100 light split,
with 0.55x built-in c-mount lens, or remove to become a 1x c-mount
Bonder arm focusing mount, flexible articulating arm stand with c-clamp mount
Dust cover and instruction manual

Specifications

• Trinocular viewing head inclined at 30°
• 0/100 light split
• Built-in 0.55x c-mount camera adapter
• Widefield 10x/23mm focusing eyepieces with roll down eyeguards

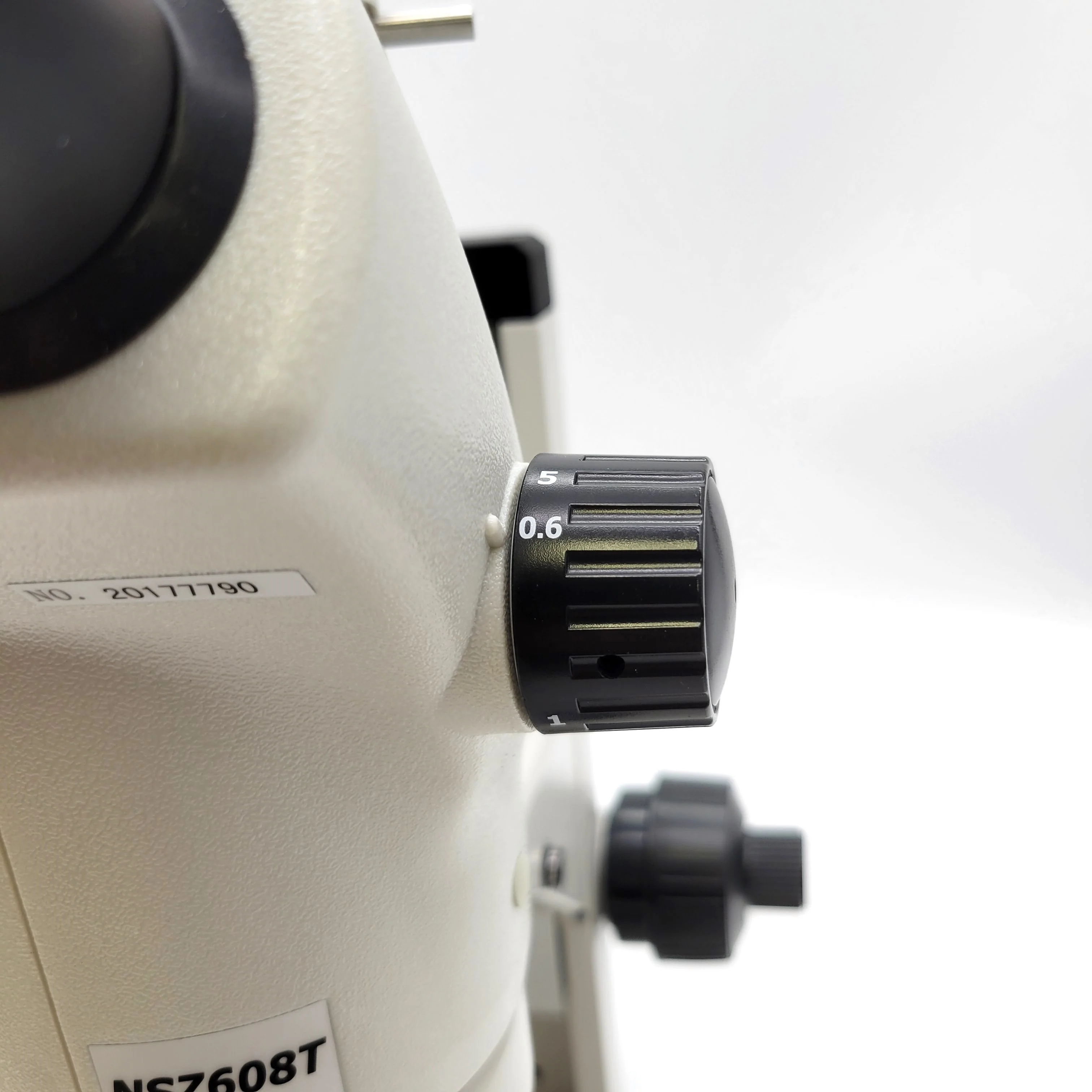

• 0.6x – 5.0x zoom magnification range
• 8:1 zoom ratio
• Magnification range 6x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 55mm – 75mm
• 115mm working distance
• Articulating Arm with lockable 14.5” vertical motion range and 3’ scannable range
• Horizontal or vertical c-clamp mount
• Bonder Arm (E-Arm)
• Airtight and anti-mold design
• Shipping weight 21lbs.
