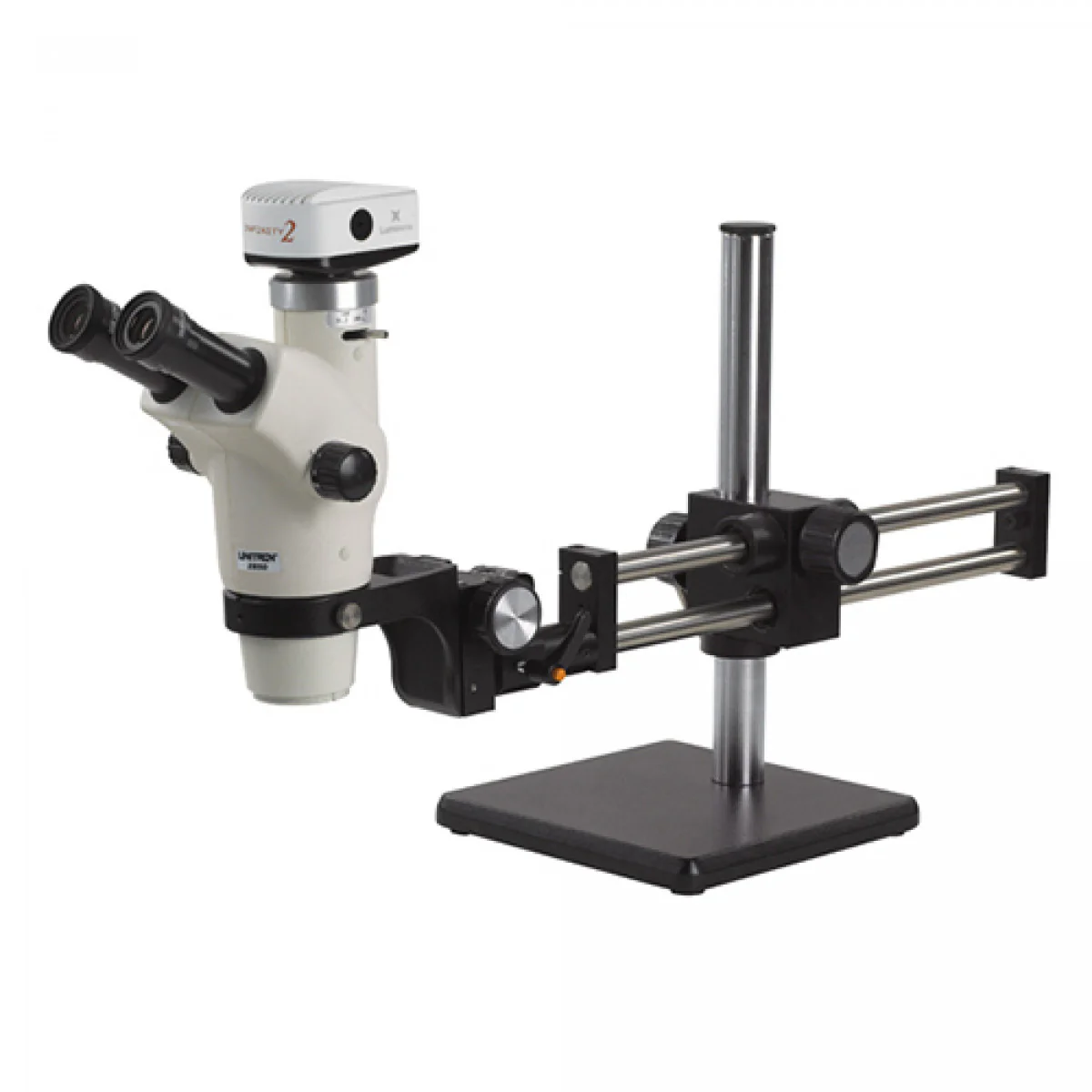

Trinocular High Resolution Zoom Stereo Microscope

On Ball Bearing Boom Stand
Trinocular viewing head, 0.6x to 5.0x zoom range, inclined at 30°,115 mm working distance,
interpupillary distance adj, 52-75mm, glass lens shield
WF 10x eyepieces with built-in diopter adjustment (paired) 23mm field of view, 0/100 light split,
with 0.55x built-in c-mount lens, or remove to become a 1x c-mount
Bonder arm focusing mount, ball bearing boom stand
Dust cover and instruction manual

Specifications

• Trinocular viewing head inclined at 30°
• 0/100 light split
• with built-in 0.55x c-mount camera adapter
• Widefield 10x/23mm focusing eyepieces with roll down eyeguards
• 0.6x – 5.0x zoom magnification range
• 8:1 zoom ratio
• Magnification range 6x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 55mm – 75mm
• 115mm working distance
• Ball bearing boom stand with bonder arm focusing mount
• Base: 254mm x 254mm (10" x 10")
• Vertical Post: 394mm
• Horizontal Post: 585mm
• Weight: 42lbs
• Airtight and anti-mold design
• Shipping weight 51lbs.
