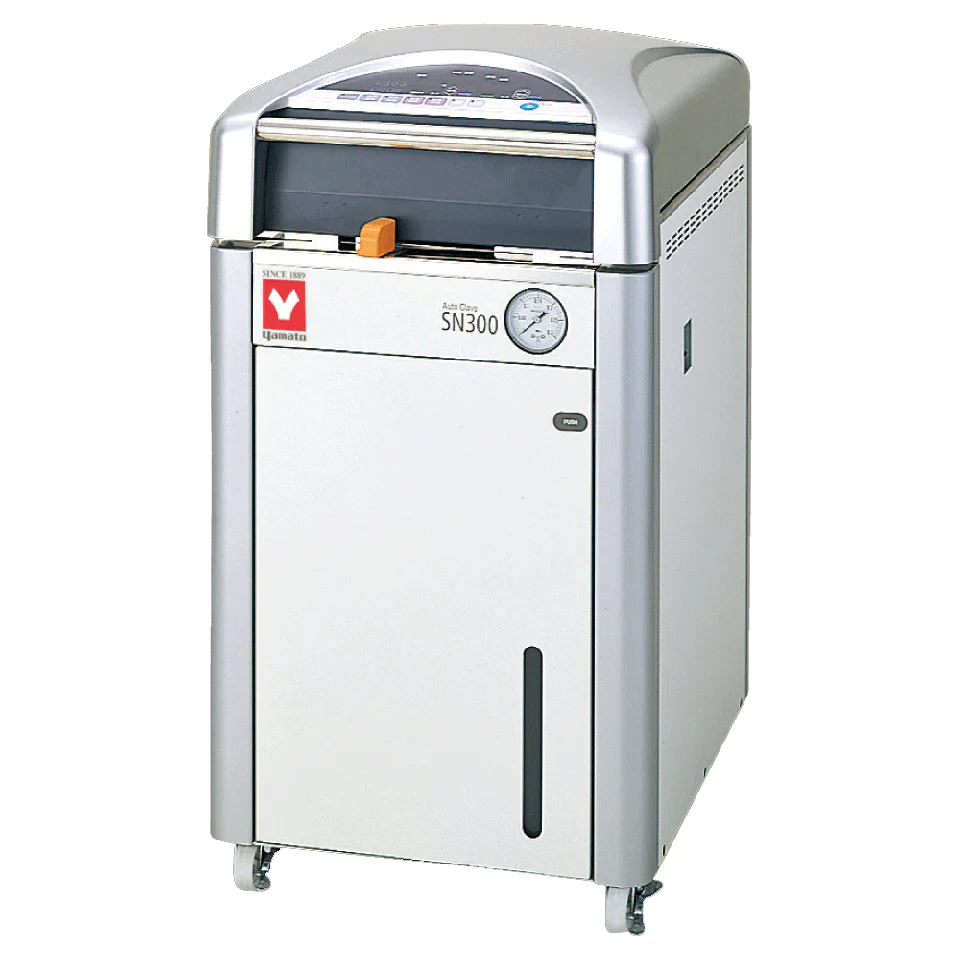

Yamato SN-310C Standard Sterillizer (without dryer), 32L 200-240V 12.5-15A 50/60Hz

High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples

Operation and functions

• Maximum sterilizing temperature goes up to 135°C suitable for protein modification
• By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
• Custom programs can be saved for repeated use
• Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
• Mobile on wheels

Safety Features

• Lid interlock mechanism
• Drain bottle unset alarm
• Memory malfunction
• Automatic shutdown when malfunction
• Self-diagnostic functions

Specifications

Item Code	241055
Model	SN310
System	Automatic high-pressure steam sterilization
Operating temperature range	45～135℃　45～80℃（Preheating temperature）/45～60℃（Heat-retention process）/65～100℃（Solution process）/105～135℃（Sterilization）
Max. working pressure	0.255MPa
Ambient temperature	5～35℃
Lid	Manual upward opening with an interlock for safety
Heater	100V, 800W×2 units
Exhaust valve	One exhaust valve and one slow release valve
Connection ports for optional accessories	Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ), Female thread pressure sensor (Branching from the solenoid valve tubing)
Cooling fan	Axial fan motor
Temp. controller	PID control by microprocessor
Temp. display / setting	Digital display / digital setting by ▲/▼ keys
Timer / Timer resolution	0 or 1 min. to 99 hrs 59 min. / 1 min.
Operation mode	Instrument sterilization course, Liquid sterilization course, Sterilization and keep warm course, Melting and keep warm course, Customer-programmed course
Other function	Key locking, Presetting, Saving, Preheating, Forced cooling, Sample temperature sensor (option), Pattern locking, Up to 20 error log saving, Display of accumulated working time / Present time, ON-OFF beeping setting
Safety device	Sensor failure detection, SSR short-circuit, Broken heater wire, Prevention of idle heating (Liquid expansion type), Alarm against the absence of a drain bottle, Failure in locking the lid, Memory error detection, Pressure relief valve (0.255 MPa)
Accessories	2 pcs. stainless steel mesh basket (Dia.262×D204mm), OSM-70/Vapor cup×1, Drain bottle×1, Drain board×1, Chemical indicator 1 set (30 pieces), Filter×1
Internal dimensions（W×H mm）	300×445mm
External dimensions（W×D×H mm）	460×590×848mm
Remarks(dimensions)	Internal capacity 32L
Power Source	AC200～240V  Single phase
Weight	75kg



This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.

Product Brochure
