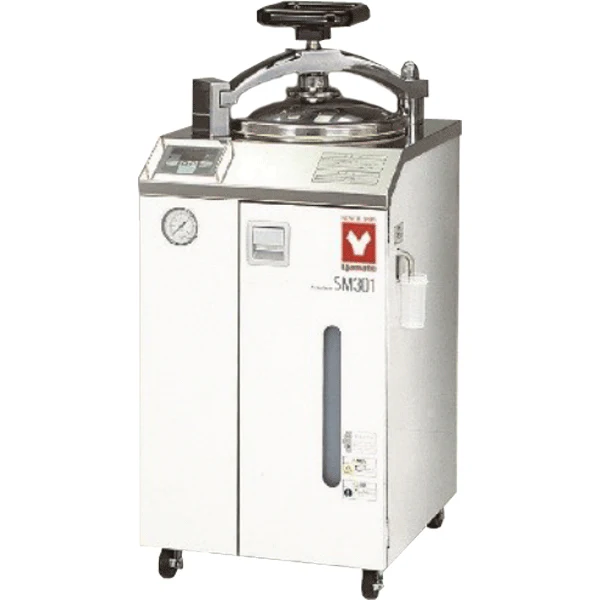

Yamato SM-311 Standard Steam Sterilizer With Dryer, 32L 220V 17.5A 50/60Hz

High performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps

Operation and functions

• Automatic operations from sterilization to drying carried out with an interactive key input system
• Quick sample drying capability makes samples ready to use right after sterilization
• Drying temperature can be set according to sample material, quantity, etc.
• Timer range from 1~999 hours
• Drain bottle water level can be quickly confirmed on the front panel level indicator
• Drain valve located in front for easy access
• Absence of protrusions in sterilization chamber makes insertion & removal of baskets, and other items quick and easy
• Self-diagnostic functions make operation safer and error recovery quicker
• Condensation collector neutralizes high temperature exhaust steam safely

Specifications

System	Automatic high pressure steam sterilization
Operating Temperature Sterilization	105 to 128°C
Operating Temperature Drying	150 to 180°C
Maximum Pressure Capacity	0.2MPa
Interior	Stainless steel
Heater Sterilization	1.7kW
Heater Drying	1.5kW
Temp. Controller	PID control by microprocessor
Temp. Display	Digital display by green LED and setting via ▲▼ keys
Timer / Timer Resolution	1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr.
Safety Device	Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch
Internal Dimensions	300 x D445 mm
External Dimensions WxDxH	440 x 530 x 968 mm
Internal Capacity	32L
Power Source (50/60Hz Single Phase)	AC115V 17.5A (no plug, round terminal) AC220V 9.5A (no plug, round terminal)
Weight	~80kg
Accessories	2 pcs. stainless steel mesh basket (⌀262 x D204 mm), OSM-70



This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
