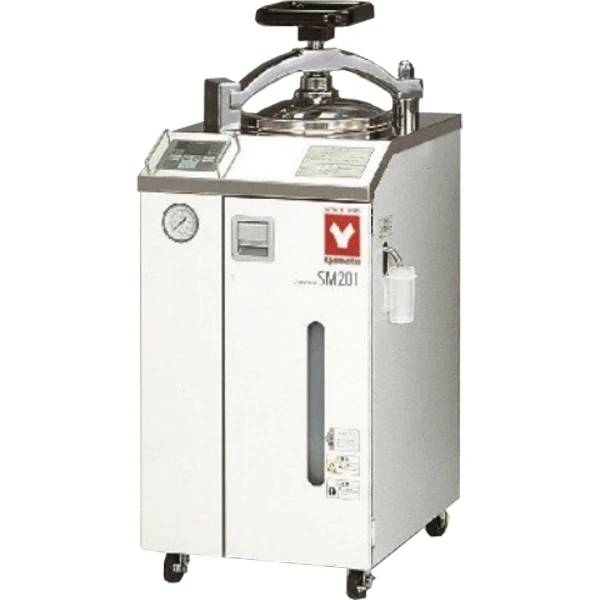

Yamato SM-211 Standard Steam Sterilizer With Dryer, 20L 220V 7A 50/60Hz

High performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps

Operation and functions

• Automatic operations from sterilization to drying carried out with an interactive key input system
• Quick sample drying capability makes samples ready to use right after sterilization
• Drying temperature can be set according to sample material, quantity, etc.
• Timer range from 1~999 hours
• Drain bottle water level can be quickly confirmed on the front panel level indicator
• Drain valve located in front for easy access
• Absence of protrusions in sterilization chamber makes insertion & removal of baskets, and other items quick and easy
• Self-diagnostic functions make operation safer and error recovery quicker
• Condensation collector neutralizes high temperature exhaust steam safely

Specifications

System	Automatic high pressure steam sterilization
Operating Temperature Sterilization	105 to 123°C
Operating Temperature Drying	150 to 180°C
Maximum Pressure Capacity	0.18MPa
Interior	Stainless steel
Heater Sterilization	1.3kW
Heater Drying	1.0kW
Temp. Controller	PID control by microprocessor
Temp. Display	Digital display by green LED and setting via ▲▼ keys
Timer / Timer Resolution	1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr.
Safety Device	Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch
Internal Dimensions	⌀240 x D445 mm
External Dimensions WxDxH	410 x 470 x 957 mm
Internal Capacity	20L
Power Source (50/60Hz Single Phase)	AC115V 13A (with plug) AC220V 7A (no plug, round terminal)
Weight	~65kg
Accessories	2 pcs. stainless steel mesh basket (⌀205 x D204 mm), OSM-60



This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
