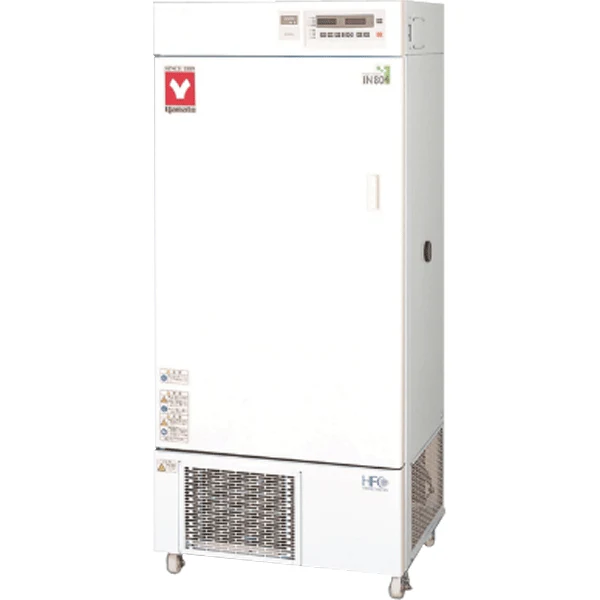

Yamato IN-804 Forced Convection Refrigerated Incubator, 286L (115V)

Standard low temperature forced convection incubators applicable for low temperature tests and environmental tests.

Operation and functions

• High accuracy temperature control and temperature distribution
• Inner glass door keeps temperature stable during sample observation
• Designed with a large dual glass door and inner door that forms a triplex glass door for improved heat retention (IN604W/804W)
• Interior light for better sample visibility (IN604W/804W)
• Optional slide shaker table available to put in and take out samples easily (IN604W/804W)

Specifications

System	Forced air convection
Operating Temperature Range	-10°C~+50°C
Temperature Adjustment Accuracy	±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation)
Temp. Distribution Accuracy	±1.0°C (refrigerator in continuous operation at 37°C)
Max. Temp. Reaching Time	20~50°C ~20min
Minimum Temp. Reaching Time	20~-10°C ~ 45min
Interior Material	Stainless steel
Exterior Material	Chrome free electronic galvanized plated steel plate chemical proof baking finish
Observation Window	---
Heat Insulation Material	Styrene foam
Refrigerator	Air-cooled fully closed compressor 250W
Refrigerator Medium	R134A
Defrosting Mechanism	Manual ON / Auto OFF, Timer operation, Cycle operation
Blower Fan	Axial fan
Heater	Iron-chrome wire heater: 550W
Sensor	Platinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device)
Cable Port (Right Side)	I.D.: 32 mm
Temperature Control	PID control
Temperature Setting	Digital setting with ▲▼ keys
Temperature Display	Measured temperature: 4-digit orange LED digital display + VFD fluorescent display
Timer / Timer Resolution	0 min. ~ 999 hrs. 59 min. / 1 min.
Operation Function	Fixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation)
Additional Functions	Timer function (accumulated time to 49,999 hrs), calibration off-set function, clock display
Safety Device	Self diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device
Internal Dimensions W X D X H	600 x 477 x 500 mm
External Dimensions W X D X H	710 x 645 x 913 mm
Internal Capacity	143L
Shelf Plate Load	15kg / pc.
Shelf Rest Step Number / Pitch	13 steps / 30mm
Power Supply (50/60Hz)	AC115V 9A (with plug)
Weight	~89kg
Shelf / Shelf Brackets	3 pcs. / 6 pcs. stainless steel punched metal
Door Keys	---
Optional Items	Stand, additional shelf, cable port (ø30/50mm), recorder, warning light combination (stand-by/operation/error), observation window, external communication function (RS485), temperature output terminal (4-20mA), external alarm output terminal, time up output terminal
