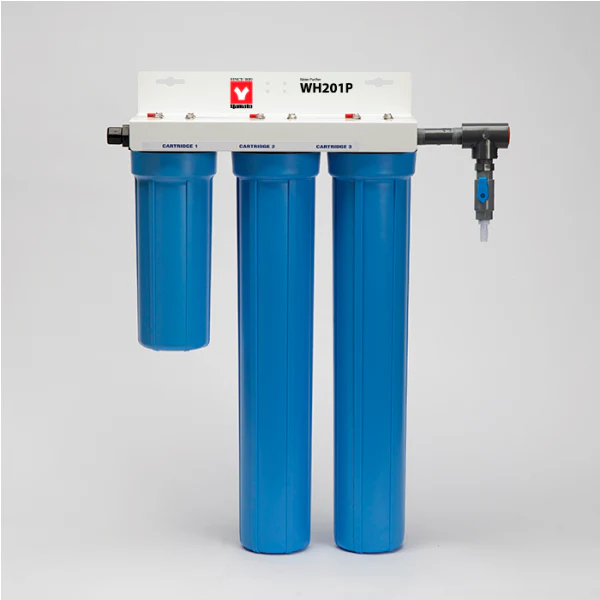

Yamato High Capacity DI System - 2-1/2" Diameter (10" Carbon, (2) 20" High Capacity DI) WH-201C

A pre-assembled cartridge system that provides deionized water using a staged filtration process. Water purification is provided using a three-stage process.

Features

• Turn-key system for low cost – on demand service
• Resistivity light included for visual indication of cartridge replacement
• Available in high purity and high capacity configurations
• Available in 2-1/2″ and 4/1/2″ diameter configurations
• Outlet isolation valve, spanner wrench and associated tubing provided
• Economically produces DI water

Application

• High purity models: WH201P and WH501P: use low odor mixed bed cartridges for applications requiring better than 10 MΩ water quality
  General deionization, battery water filling, humidification, hydrogen generator, glassware rinse, glassware washer, sterilizers
• High capacity models WH201C and WH501C: provide water quality better than 50 kΩ, for less corrosive applications, ideal for scale reduction and non-stainless steel piping systems
  Environmental chambers, sterilizers, ultrasonic cleaners, chiller loops

3 Stage Process

• Stage 1
  Removes particles greater than 5 micron, chlorine, and organics
• Stages 2 & 3
  Deionizers designed to remove dissolved minerals

Specifications

Distilled Water Capacity In Gallons
FEEDWATER Total Dissolved Solids (TDS As CaCO₃)	High Capacity DI Water Better than 50 Kohm
10 Ppm*	3000
100 Ppm	300
300 Ppm	100
500 Ppm	60
Filter Technology	(1) 10” Carbon Block (2) 20” High Capacity
Bowl Diameter	2.5”
Resistivity Light	20 KΩ
Flow Rate	0.5 gpm / 1.9 lpm
Total Capacity Grains As CaCO₃	2160
Typical Effluent	50 MΩ-cm
Connection	Inlet - 3/8" O.D. tubing Outlet - 1/2' hose barb
Pressure	10 PSIG minimum 100 PSIG maximum
Temperature (Max)	100˚F / 30˚C
Filter Housing	Polypropylene
Bracket	Painted steel
Dimensions (H X W X D)	24”x 20”x 6
Shipping Weight	24 lbs.
Voltage	120V
