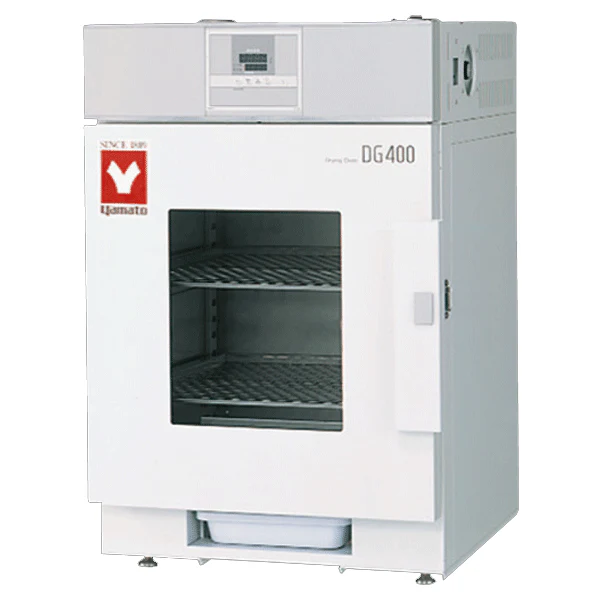

Yamato DG400C 3.2 Cu Ft. (92L 115V) Glassware Drying Oven

Natural convection oven for glassware drying

Operation and functions

• Large window for easy observation
• Can be used to store instruments after drying
• Highly efficient heat insulation material for both internal and external structure
• Adjustable foot for stability on uneven floors
• Mobile on casters (DG800C/810C/840C/850C)
• Equipped with stainless steel pipe heater and water receiving plate at the bottom
• Stainless steel interior, easy to clean and highly resistant to corrosion
• DG440C/450C/840C/850C installed with filter at air in-take port, exhaust fan and germicidal lamp for fast drying
• Dial setting and digital display of temperature control and timer

Safety features

• Self-diagnostic functions, calibration offset, independent overheat prevention, over current leakage breaker, key lock and auto recovery after power failure

Specifications

System	Natural convection
Operating Temp. Range	RT+5~70°C
Interior Material	Stainless steel
Temp. Setting Method	Digital setting by ▲/▼ keys
Heater	SUS pipe heater 1.0kW
Temp. Controller	PID control with microprocessor
Operation Functions	Fixed temperature, auto stop, auto start, quick auto stop
Sensor	Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller
Exhaust Port	I.D. 34mm × 2
Suction Port	I.D. 30mm × 2
Germicidal Lamp	None
Internal Dimensions WxDxH	450×450×450 mm
External Dimensions WxDxH	504×562×788 mm
Internal Capacity	92L
Weight	45kg
Door	Single door, silicon rubber packing
Observation Window	Standard glass 3mm W250 x H300mm
Shelf Plate Load	15kg/pc.
Shelf Rest / Pitch	10 steps / 30mm
Power Source	AC115V , AC220V
Shelf Plate / Bracket	2pcs. / 4pcs.
Water Receiving Plate	1pc.
