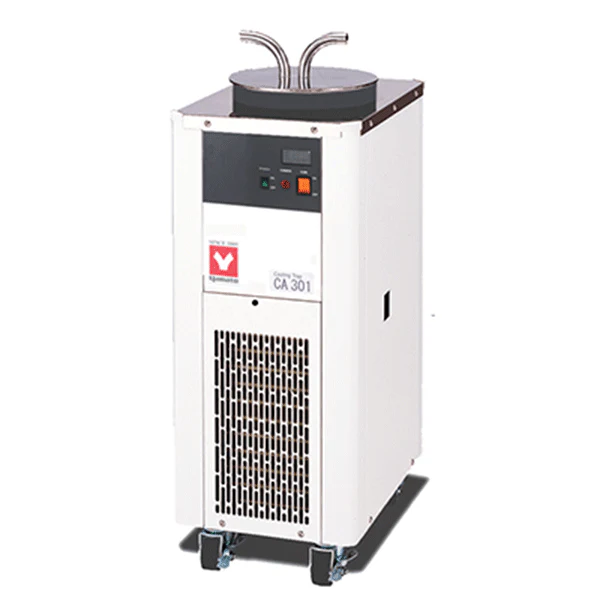

Yamato CA Series Cold Traps CA-301-220V

Efficiently traps water vapor and toxic substances discharged from vacuum oven and rotary evaporator to protect the vacuum pump

Features

• Excellent choice to extract acid and organic solvents with the optional glass condenser
• Efficiently reduces vapor inhalation amount to the vacuum pump
• Can be used as a low temperature tank as well as pre-cooling tank
• Utilizes R404A (CA301) and R600a and mixed coolants (CA801)
• Space saving and highly mobile on wheels

Specifications

Method	Direct trap or Glass trap (optional)
Dehumidifying Capacity	Max. 0.9kg (Water type liquid)
Max. Low Temperature	-45°C
Refrigerator	Air cooling, 400W
Refrigerant	R404A
Cooling Coil	ID ø90 mm SUS304
Lid	OD ø17.6 mm with nozzle, SUS304
Bath Shape / Material	Cylindrical / SUS304
Ambient Temperature Range	5~35°C
Temperature Display	7 segment LED
Temperature Sensor	Platinum resistance temperature detector Pt100Ω
Defrosting Mechanism	N/A
Safety Device	Electric leakage breaker with over current protection, refrigeration overload relay
Sink Dimensions	I.D.153 x H235 mm
Internal Capacity	~4L (Liquid 3L)
Power Source 50/60Hz	AC220V 2.3A
External Dimension WxDxH	345x475x726 mm
Weight	~47kg



This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.

Product Brochure
