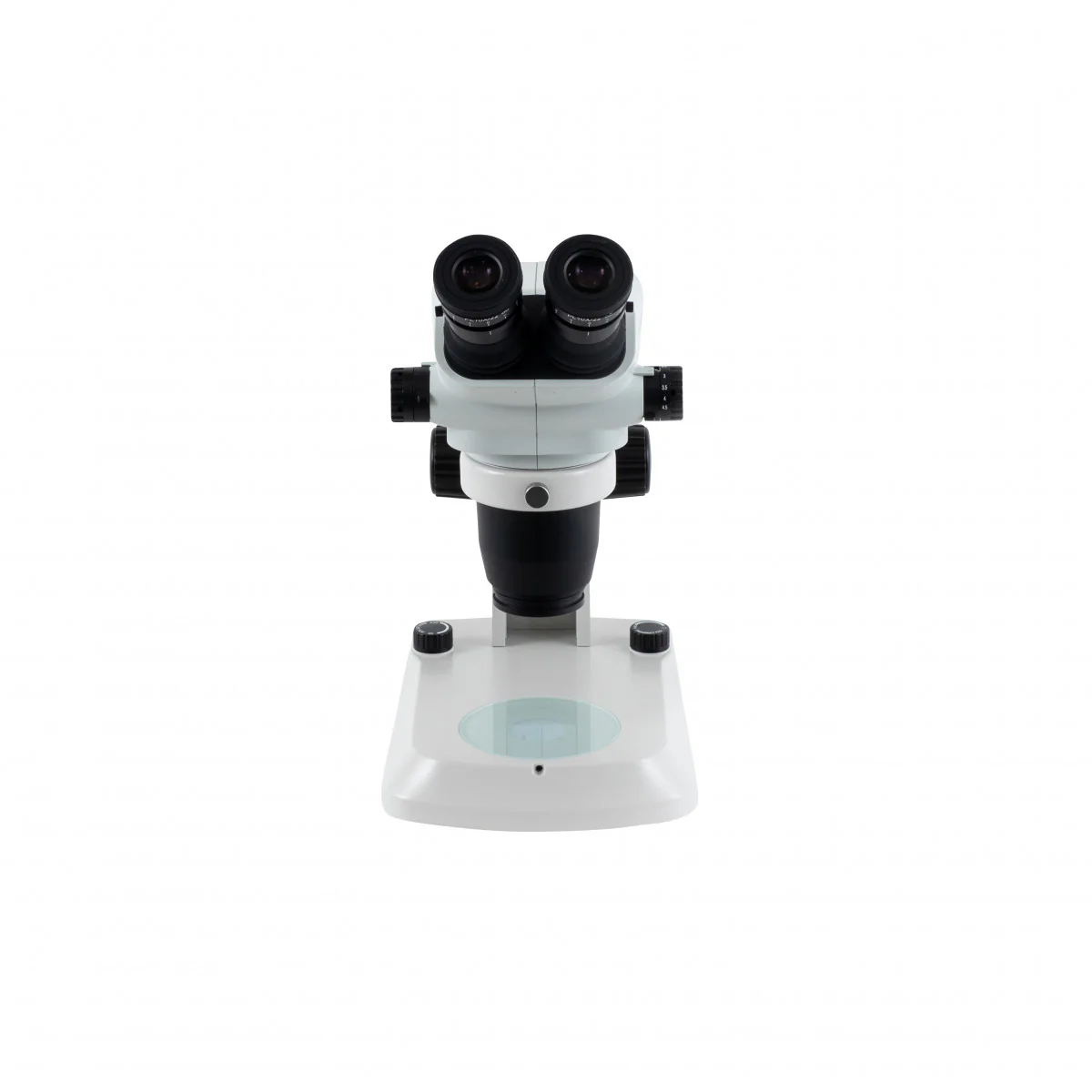

Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece.  It is an excellent stereo and inspection microscope

Specifications

• Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
• 1.0x glass lens shield
• Trinocular with fixed 50:50 light split, eyepieces:camera port
• 1.0x glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.67x – 4.5x zoom magnification range
• 6.7:1 Zoom ratio
• Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
• Interpupillary Distance Adjustment 52mm – 76mm
• Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
• 110mm working distance (1x or no auxiliary lens)
• E-LED Stand with variable reflected and transmitted illumination
• 4” (100mm) of continuously smooth focus travel
• Reflected and transmitted LED illuminators can be used independently or simultaneously, providing homogenous daylight 6500K
• LED light sources are UV and IR free, and offer service life approx. 50,000 hours
• Black, white and clear glass stage plates
• Base dimensions (LWH): 260mm x 184mm x 267mm
• Universal power supply 100V to 240V, voltage sensitive, integrated
• Airtight and anti-mold design
• Shipping weight 15lbs

Unitron Z645 Camera Adapters (for trinocular model)

Unitron Z645 Aux Lenses

Unitron Z645 Eyepiece Options

Camera Options

Brochure | More Information
