Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece.  It is an excellent stereo and inspection microscope

Specifications

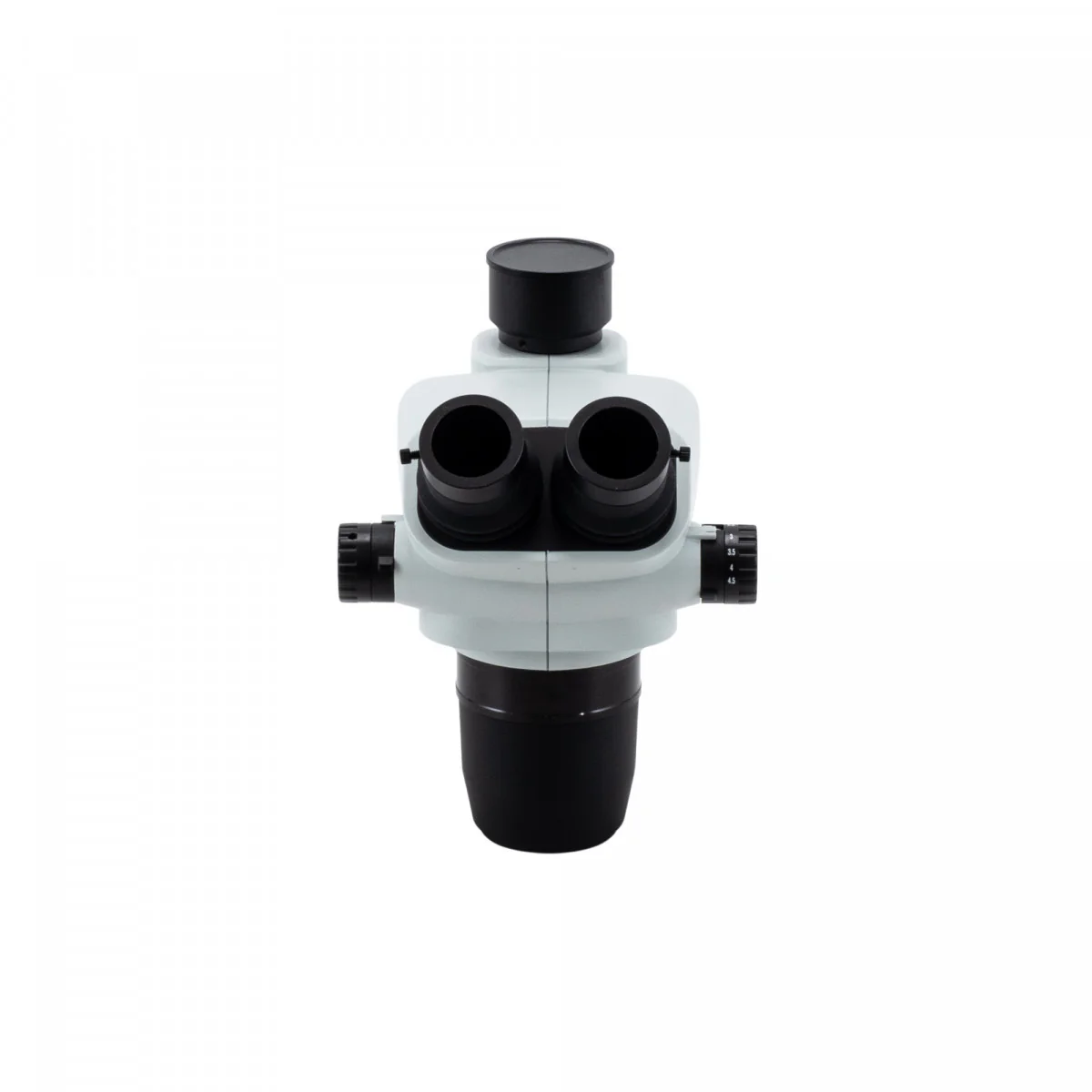

• Trinocular viewing head with 45° viewing angle
• Fixed 50:50 light split, eyepieces:camera port
• 1.0x glass lens shield
• 0.67x – 4.5x zoom magnification range
• 6.7:1 Zoom ratio
• Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
• Interpupillary Distance Adjustment 52mm – 76mm
• Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
• 110mm working distance (1x or no auxiliary lens)
• Shown with eyepieces. Eyepieces are not included.
