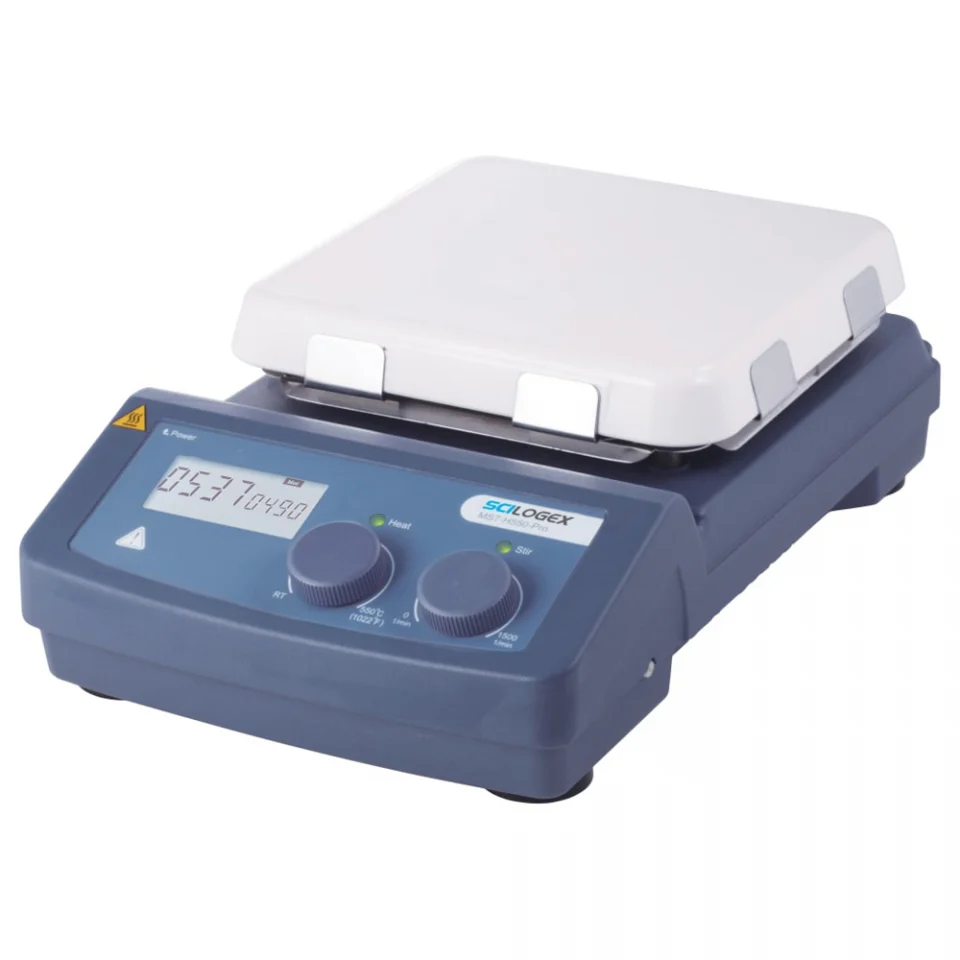

SCILOGEX MS7-H550-S 7x7 LED Digital 7" Square Magnetic Hotplate Stirrer with Ceramic Glass Plate Model # 813221009999

The SCILOGEX MS7-H550-S provides powerful heating and stirring with LED digital display of the set temperature and real-time temperature display. LED heating and analog stirring are simply controlled turning the respective control knobs.

• LED display for precise monitoring of temperature
• A wide speed range of 0 to 1500rpm
• Heat only, stir only or heat and stir together functions
• Max. Heating plate temperature 550°C
• Low temperature stability
• Electronic speed control for constant speed even during changes in load
• External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
• High magnetic adhesion
• “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
• cTUVus approved for UL and CSA
• 2 YEAR WARRANTY

Specifications:

Work plate dimension [W x D]	184x184mm (7 inch)
Work plate material	Glass ceramic
Motor type	Shaded pole motor
Motor input power	15W
Motor output power	1.5W
Power	1030W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Stirring positions	1
Max. stirring quantity [H2O]	10L
Max. magnetic bar [length]	80mm
Speed range	0-1500rpm
Speed display	Scale
Temperature display	LED
Heating temperature range	Room Temp.-550°C, increment 5°C
Temperature control accuracy	±10°C
Overheating protection	580°C
Overheating protection	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" warning	50°C
Protection class	IP21
Dimension [WxDxH]	215x360x112mm
Weight	4.5kg
Permissible ambient temperature and humidity	5-40°C, 80%RH
