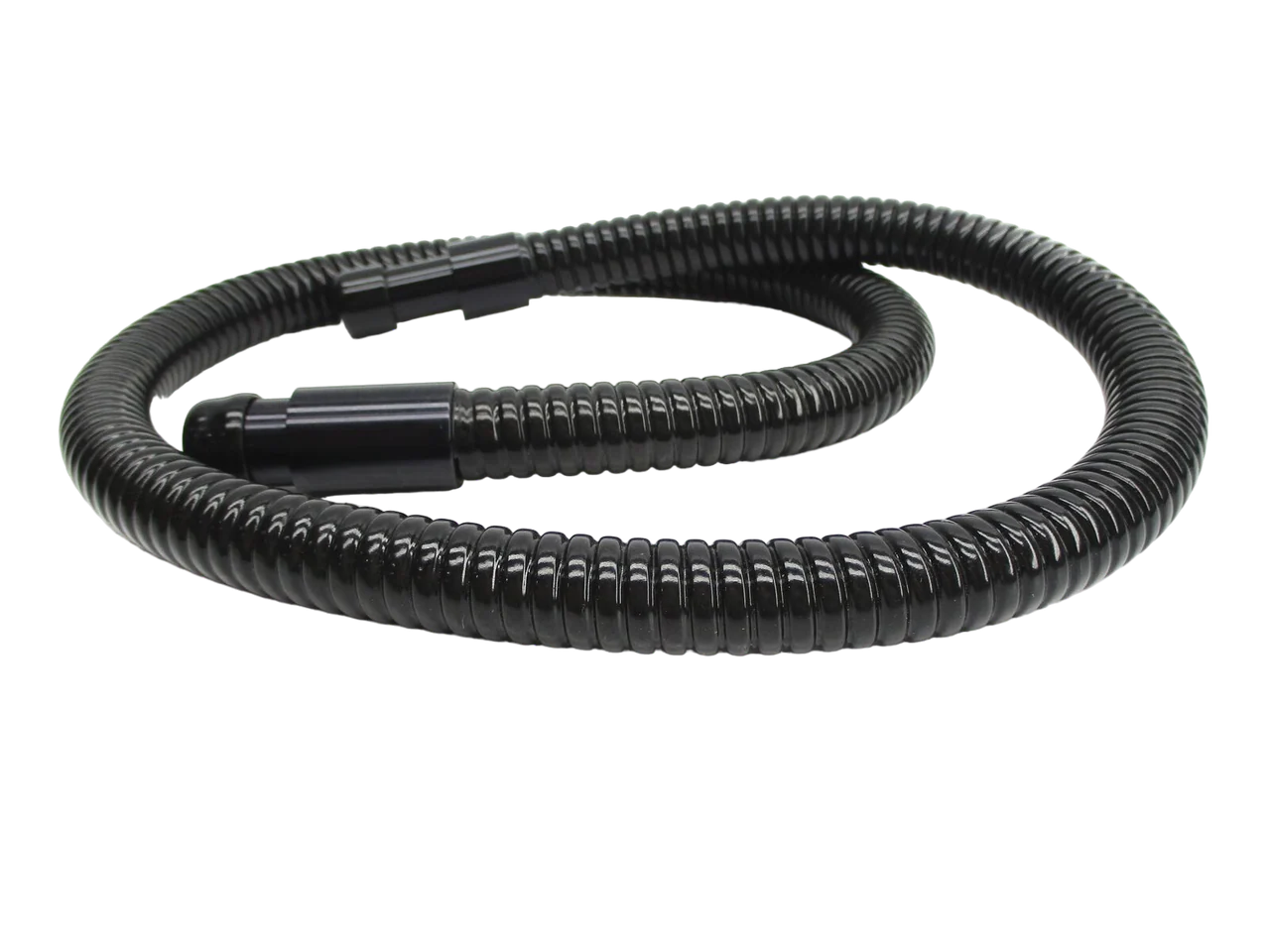

Schott Single Flexible Light Guide | A08051.40

SCHOTT A08051.40 Single Flexible 40" Light Guide 0.510" Diameter

Features:

• Variety of standard sizes with tight bending radius for easy routing
• Standard output ferrules accept spot lenses and polarizing caps
• Standard input accepts Dichroic color filters, diffusers and ColdVision Series light sources
• Bundle Input: Black Anodized Aluminum. Bundle Sheathing: PVC Covered Metal Tubing

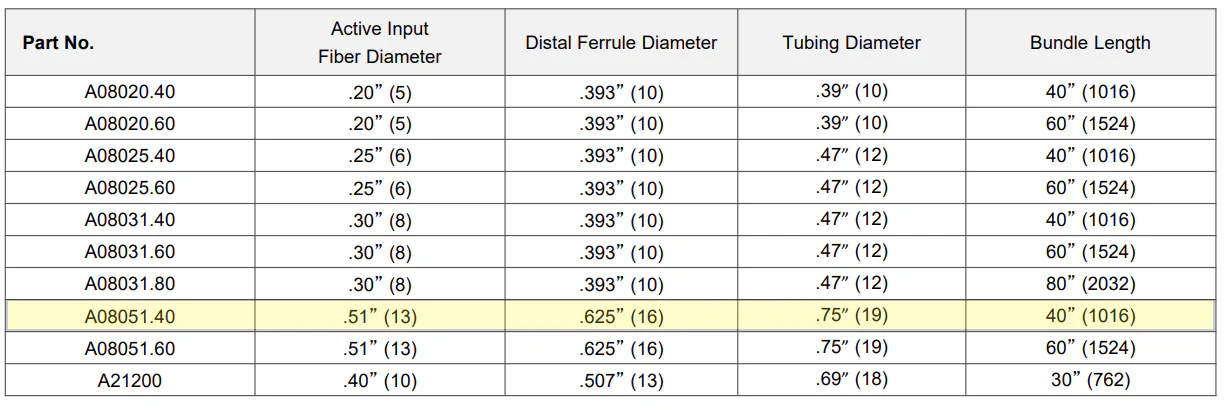

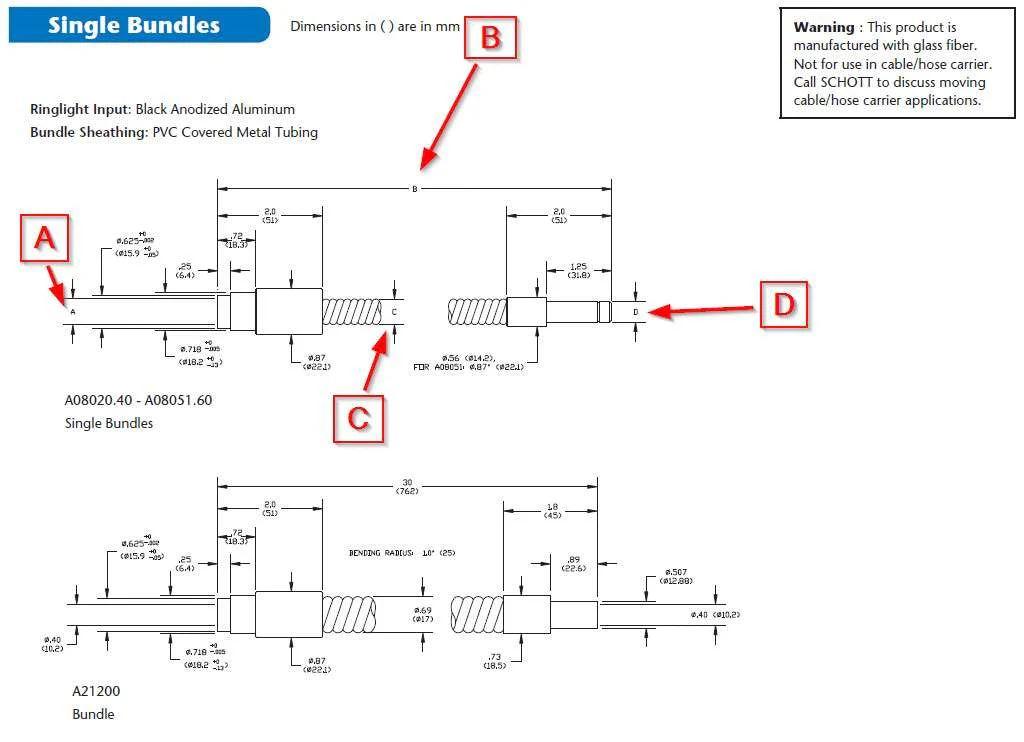

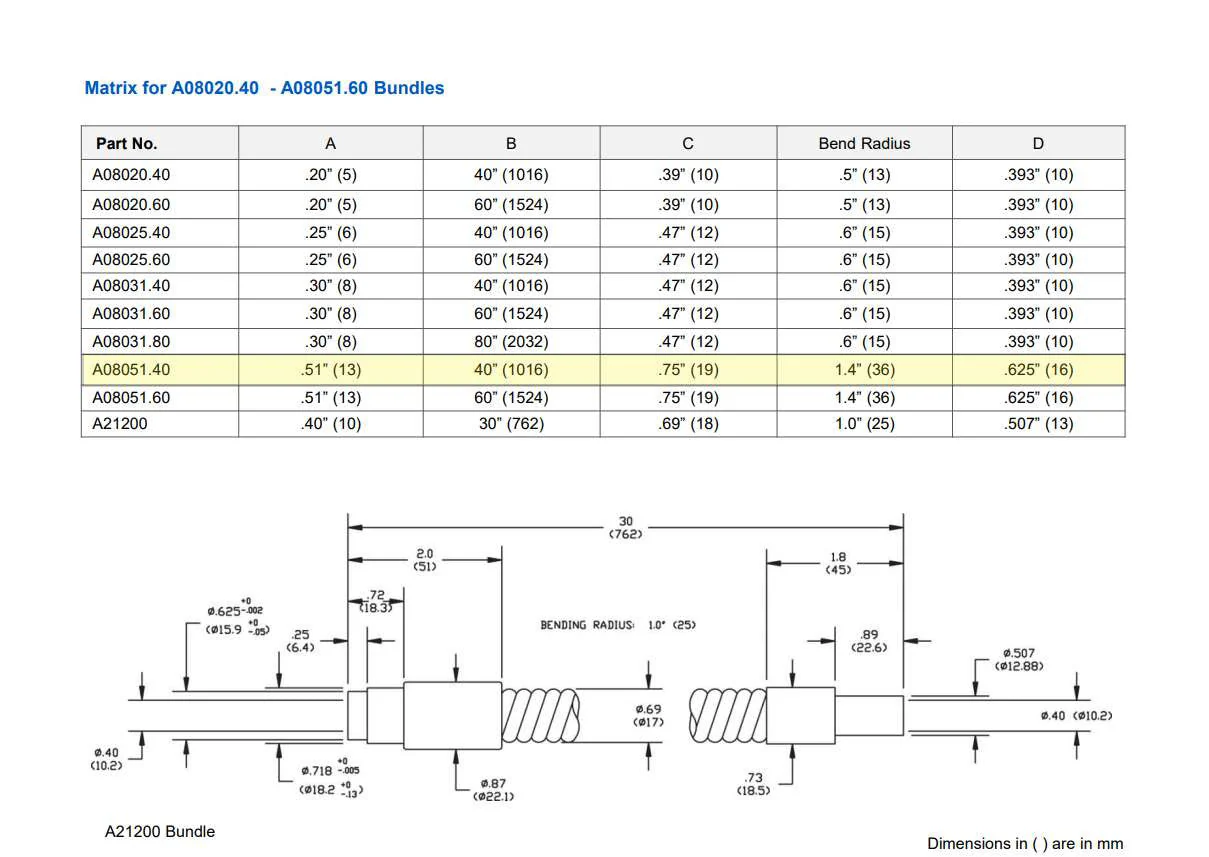

Specifications:

• Active Input Fiber Diameter: 0.51" (13mm)
• Distal Ferrule Diameter: 0.625" (16mm)
• Tubing Diameter: 0.75" (19mm)
• Bundle Length: 40" (1016mm)

Brochure
