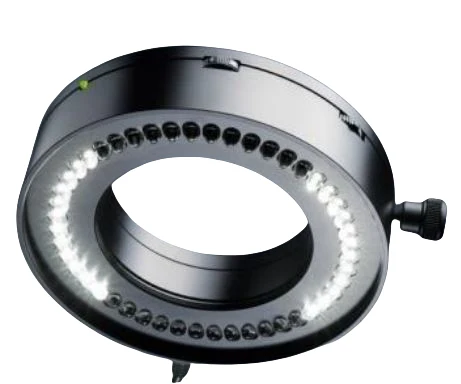

Schott EasyLED Plus Ringlight System | 600.300

The EasyLED Ringlight Plus System (600.300) has the advantage of controllable segments to enable new contrasting methods. At the same time, the integrated ‘jog dial’ element provides simple and intuitive switching between illumination modes and rotation of the segments in both directions.

The EasyLED PLUS system is brighter and more illuminated than the 600.200 standard system.

The simple 600.200 and the Plus 600.300 EasyLED system are 66mm I.D. to fit most microscopes. If you want a perfect fitment for your specific microscope, measure the bottom lens where the ring light connects and select the option to add a ring light adapter for 58mm or 60mm.

If you don't have the bench space for a traditional fiber optic illuminator or want simple, reliable LED illumination, the Schott EasyLED system is a great choice. If you need assistance with the correct adapter for your microscope, please contact us, and we can assist you.

Features:

• Consistent Color Temperature (daylight) approx. 5600K
• 50K Hr. Energy Efficient LED
• Integrated controller for continuous dimming (0-100%) and separate on/off switch
• Integrated "Jog Dial" wheel for easy and intuitive operation of Segmentation
• Wide range of working distances: 55 - 130 mm
• Maximum illuminance: 140 lx @ 65mm WD
• Silent Operation, completely without noise or vibration
• Robust Anodized metal housings
• 45 high-brightness LED's
• Fits microscope objectives 66 mm/adapters available for 58mm & 60mm Objectives

Brochure
