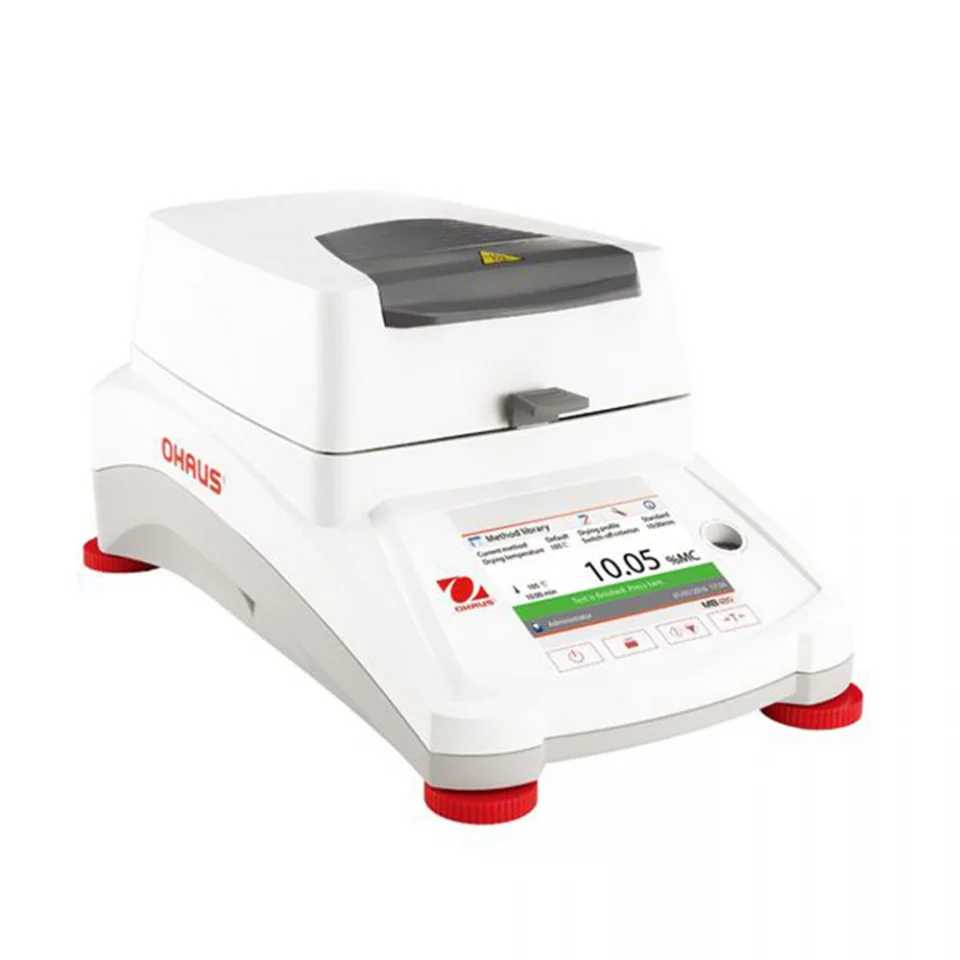

Ohaus MB120 Moisture Analyzer Model # 30241165

Moisture Analysis Made Simple and Powerful

• MB120's Temperature Guide analyzes a sample and determines the optimal drying temperature. Store up to 100 drying methods for easy recall and up to 1000 total results for statistical analysis.
• Precisely controlled halogen heating dries samples uniformly, producing repeatable results of 0.01% readability. Four drying profiles & seven shut-off criteria help to perform customized sample tests.
• The MB120 features a removable pan handler and sample chamber for easy cleaning. Operating the MB120 is intuitive – simply follow the guided instructions on the touchscreen display.

Product Specifications

Maximum Capacity	120 g
Readability Moisture Content	1 mg/0.01%
Pan Size (Ø_Diameter)	90.0 mm (3.5 in)
Heater Type	Halogen Lamp
Dimensions (Width)	211.0 mm (8.31 in)
Dimensions (Length)	355.0 mm (13.98 in)
Net Weight	5.23 kg (11.53 lb)
Test Weight	50g, OIML F2 or ASTM CL 4
Dimensions (Height)	180.0 mm (7.09 in)
Temperature Range	40 °C – 230 °C
Working Environment	10°C – 40°C, 85%RH, non-condensing
Operating Range (Temp.)	10 °C – 40 °C
Shut-Off Criteria	Manual; Timed; Automatic - Preset Weight Loss/Time; Custom - User Set Weight Loss/Time; Custom-User Set Moisture% Loss/Time
Power	115 v, 60 Hz
Display	Full-Color 4.3 in Touchscreen WQVGA
Working Environment	50°F – 104°F, 85%RH, non-condensing
In-use cover	Included
Moisture Range	0 % – 100 %
Test Library	100
Heating Profiles	Standard; Ramp; Step; Fast
Sample Size	0.5 g – 120 g



This product ships directly from Ohaus, ensuring fast delivery, proper handling, and factory-fresh quality. When you purchase Ohaus, you’re backed by one of the most trusted names in laboratory equipment — known worldwide for precision, reliability, and exceptional support. Shop with confidence knowing your order is fulfilled by the manufacturer themselves

Product Brochure
