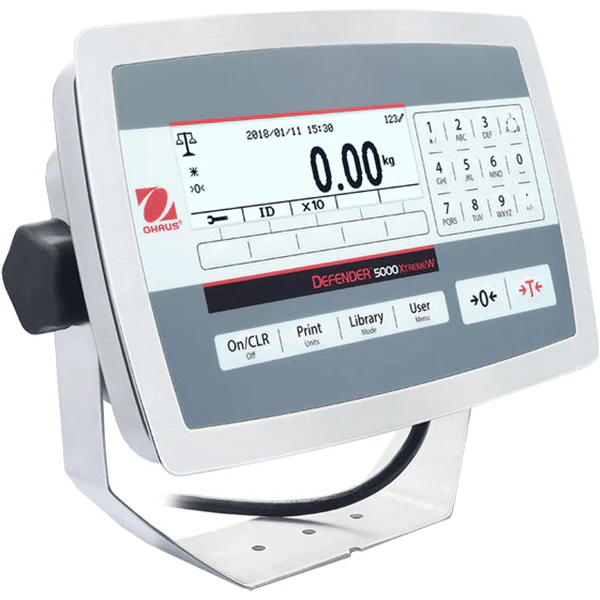

Ohaus Indicator, TD52XW AM 30424079

Product image 1

Ohaus Indicator, TD52XW AM 30424079

Ohaus Indicator, TD52XW AM 30424079

The OHAUS next generation Defender 5000 Series multifunctional indicator is ideal for use in conjunction with bench and floor scales for a multitude of applications including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 Series is designed to handle demanding industrial and commercial applications.

Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
IP68/NEMA 4X stainless steel housing and mounting bracket
Design Features
Check weighing symbols with selectable operation and audible signal settings, menu lock switch, multiple operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim, auto-off, auto tare, screensaver

Specifications:

Resolution 75,000
Resolution (Certified) 10,000
Battery Life 20 Hours with Rechargeable Battery
Outputs 3 In/4 Out digital I/O;  4 - 20mA
Second Scale Input Not Applicable
Protection Rating IP68
Communication RS232 (Included);  2nd RS232/RS485/USB (Available as an Accessory);  USB Host (Available as an Accessory);  WiFi/Bluetooth (Available as an Accessory);  Ethernet (Available as an Accessory)
Dimensions 8.7 in x 10.6 in x 3 in (222 mm x 270 mm x 76 mm) (HxLxW)
Display Dot matrix LCD with white LED backlight
Legal for Trade Measurement Canada Approved;  NTEP Certified
Net Weight 4.4 lb (2 kg)
Power Rechargeable Battery (Not Included);  AC Power (Included)
Protection Rating IP68
Tare Range To capacity by subtraction
Units of Measurement Custom;  Gram;  Kilogram;  Metric Tonnes;  Ounce;  Pound;  Pound:Ounce;  Tonne
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)



This product ships directly from Ohaus, ensuring fast delivery, proper handling, and factory-fresh quality. When you purchase Ohaus, you’re backed by one of the most trusted names in laboratory equipment — known worldwide for precision, reliability, and exceptional support. Shop with confidence knowing your order is fulfilled by the manufacturer themselves
