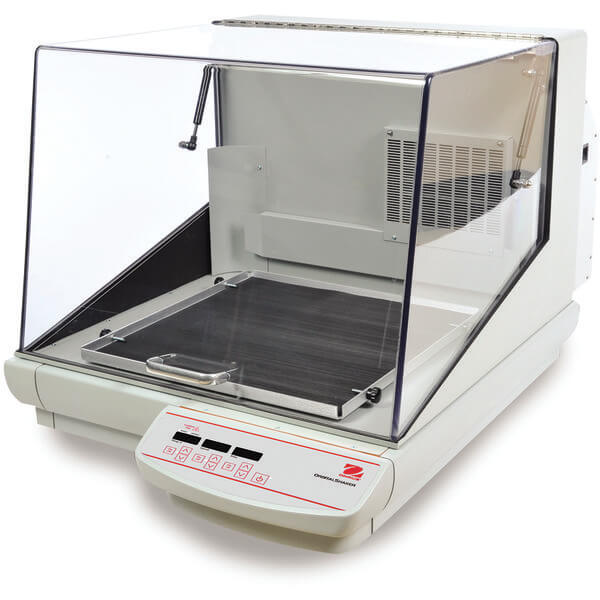

Ohaus Incubating Heavy Duty Orbital Shakers ISHD23CDG 30573779

Applications

Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures

Display

Independent LED displays for temperature, speed and time

Operation

N/A

Communication

RS232

Construction

Aluminum and Cycoloy

Design Features

Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system

Specifications

Calibration Certificate	Orbital, 25 mm
Capacity	50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm
Temp. Range	15°C below Ambient – 65°C
Speed Range	15 rpm – 500 rpm
Tray Size	18 in x 18 in (457 mm x 457 mm) (LxW)
Control	Digital
Calibration	Temperature calibration
Communication	RS232
Dimensions	32.1 in x 23.5 in x 26.6 in (815 mm x 596 mm x 675 mm) (LxHxW)
Drive System	Triple Eccentric; Brushless DC Motor
Inner Dimensions	20.6 in x 17 in x 24.8 in (523 mm x 432 mm x 629 mm) (LxHxW)
Net Weight	290.41 lb (131.7 kg)
Power	120V, 10A, 50/60Hz
Power Consumption	800 W
Safety Certification	TUV
Speed Accuracy	Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
Timer	1 second – 160 hours
Tray Construction	Aluminum
Uniformity	± 0.5°C at 37°C
Working Environment	59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
