Ohaus e-G51HSRDM Hotplate Stirrer (20 Liter Capacity) 30500560 (Discontinued)

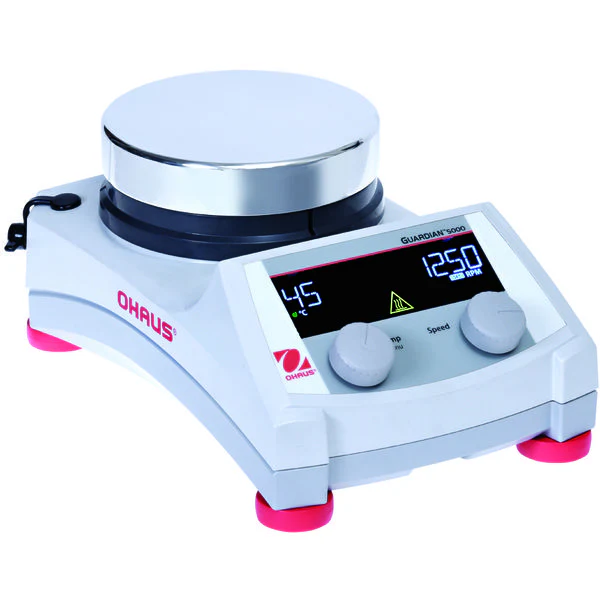

Product image 1

Ohaus e-G51HSRDM Hotplate Stirrer (20 Liter Capacity) 30500560 (Discontinued)

Ohaus e-G51HSRDM Hotplate Stirrer (20 Liter Capacity) 30500560

OHAUS Guardian 5000ℱ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.

Applications

Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

Display

Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon

Operation

Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar

Communication

N/A

Construction

Probe connection, SmartHousingℱ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops

Design Features

Hot top indicator light, audible alarm, SafetyHeatℱ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

Product Specifications

Function Heating and Stirring
Capacity {text} 20 L
Plate Construction Aluminum
Plate Size (Ø_Diameter) 135.0 mm (5.3 in)
Temperature Range Ambient + 5°C – 380°C
Speed Range 60 rpm – 1,600 rpm
Dimensions (Height) 126.0 mm (5.0 in)
Dimensions (Width) 173.0 mm (6.8 in)
Power 120V, 8.3A, 50/60Hz
Working Environment 5°C – 40°C, 80%RH, non-condensing
Dimensions (Length) 267.0 mm (10.5 in)
Net Weight 2.6 kg (5.7 lb)
Working Environment 41°F – 104°F, 80%RH, non-condensing
In-Use Cover Available as an Accessory
Safety Certification TUV
Power Consumption 896 W
Control Digital
Speed Range {text} 60 to 1600 rpm
Temperature probe Available as an Accessory
Calibration Temperature Calibration 3 Plate/3 Probe
Display Custom Backlit LCD
Speed Stability +/-2%
Temp. Stability +/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C


Logistic Specifications

Country of origin US
Customs tariff number 8419899585

This product ships directly from Ohaus, ensuring fast delivery, proper handling, and factory-fresh quality. When you purchase Ohaus, you’re backed by one of the most trusted names in laboratory equipment — known worldwide for precision, reliability, and exceptional support. Shop with confidence knowing your order is fulfilled by the manufacturer themselves

Product Brochure

$540.60
