Motic SMZ-160 Stere Microscope

Product image 1
1 / 4

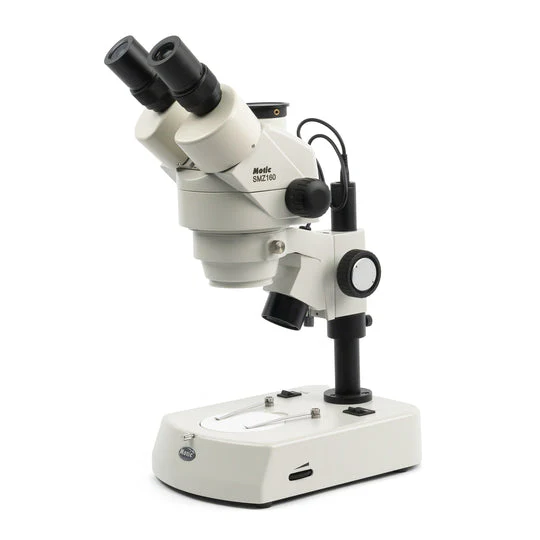

Motic SMZ-160 Stere Microscope

The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 100mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.

Additional contrast methods such as polarization microscopy and darkfield microscopy are easily performed through the addition of optional accessories.

    Specifications

    Model SMZ-160-BLED SMZ-160-BP SMZ-160-TLED SMZ-160-TP
    Observation tube Binocular head Binocular head Trinocular head Trinocular head
    Optical system Greenough Greenough Greenough Greenough
    Base 237x170mm 280x220mm 237x170mm 280x220mm
    Column/Arm Height 205mm, Ø25mm Height 221mm, Ø25mm Height 205mm, Ø25mm Height 221mm, Ø25mm
    Diopter adjustment On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter
    Eyepieces Widefield WF10X/20mm Widefield WF10X/20mm Widefield WF10X/20mm Widefield WF10X/20mm
    Focus mechanism Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment
    Focusing stroke 43mm 43mm 43mm 43mm
    Head holder For Ø 25mm column and Ø76mm head with incident illumination For Ø 25mm column and Ø76mm head For Ø 25mm column and Ø76mm head with incident illumination For Ø 25mm column and Ø76mm head with incident illumination
    Inclination 45° inclined 45° inclined 45° inclined 45° inclined
    Interpupillary distance 55-75mm 55-75mm 55-75mm 55-75mm
    Objectives 0.75X~4.5X 0.75X~4.5X 0.75X~4.5X 0.75X~4.5X
    Objectives system Zoom, ratio 6:1 Zoom, ratio 6:1 Zoom, ratio 6:1 Zoom, ratio 6:1
    Stand type Pole type stand with transmitted illumination Pole type stand without illumination Pole type stand with transmitted illumination Pole type stand with transmitted illumination
    Standard contrast technique Brightfield Brightfield Brightfield Brightfield
    Working distance 100mm 100mm 100mm 100mm
    Transformer Internal Fixed 50:50 Internal Fixed 50:50
    Accessories included Black, white and frosted stage plates and dust cover Black, white and frosted stage plates and dust cover Black, white and frosted stage plates and dust cover Black and white stage plates and dust cover
    Dimensions LxWxH 237x170x398mm 280x220x367mm 237x170x398mm 280x220x367mm
    Weight Net 3.5kg 3.2kg 3.7kg 3.4kg

    Select Model
    From $898.65
    Motic SMZ-160 Stere Microscope—
    $898.65

    Product Information

    Shipping & Returns

    Description

    The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 100mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.

    Additional contrast methods such as polarization microscopy and darkfield microscopy are easily performed through the addition of optional accessories.

      Specifications

      Model SMZ-160-BLED SMZ-160-BP SMZ-160-TLED SMZ-160-TP
      Observation tube Binocular head Binocular head Trinocular head Trinocular head
      Optical system Greenough Greenough Greenough Greenough
      Base 237x170mm 280x220mm 237x170mm 280x220mm
      Column/Arm Height 205mm, Ø25mm Height 221mm, Ø25mm Height 205mm, Ø25mm Height 221mm, Ø25mm
      Diopter adjustment On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter On both tubes, +/- 5 diopter
      Eyepieces Widefield WF10X/20mm Widefield WF10X/20mm Widefield WF10X/20mm Widefield WF10X/20mm
      Focus mechanism Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment Coarse focusing system with tension adjustment
      Focusing stroke 43mm 43mm 43mm 43mm
      Head holder For Ø 25mm column and Ø76mm head with incident illumination For Ø 25mm column and Ø76mm head For Ø 25mm column and Ø76mm head with incident illumination For Ø 25mm column and Ø76mm head with incident illumination
      Inclination 45° inclined 45° inclined 45° inclined 45° inclined
      Interpupillary distance 55-75mm 55-75mm 55-75mm 55-75mm
      Objectives 0.75X~4.5X 0.75X~4.5X 0.75X~4.5X 0.75X~4.5X
      Objectives system Zoom, ratio 6:1 Zoom, ratio 6:1 Zoom, ratio 6:1 Zoom, ratio 6:1
      Stand type Pole type stand with transmitted illumination Pole type stand without illumination Pole type stand with transmitted illumination Pole type stand with transmitted illumination
      Standard contrast technique Brightfield Brightfield Brightfield Brightfield
      Working distance 100mm 100mm 100mm 100mm
      Transformer Internal Fixed 50:50 Internal Fixed 50:50
      Accessories included Black, white and frosted stage plates and dust cover Black, white and frosted stage plates and dust cover Black, white and frosted stage plates and dust cover Black and white stage plates and dust cover
      Dimensions LxWxH 237x170x398mm 280x220x367mm 237x170x398mm 280x220x367mm
      Weight Net 3.5kg 3.2kg 3.7kg 3.4kg
