Motic Moticam 4000X Color Camera HDMI, USB, WiFi5 inputs | Microscope Camera

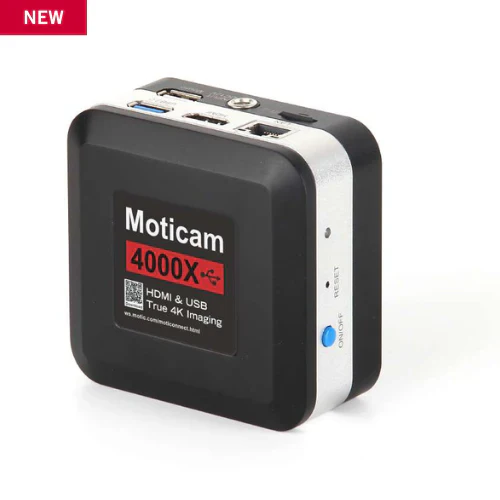

Moticam 4000X - True 4K Imaging
The Full HD affordable multi-tasking microscopy camera. The Moticam 4000X is dedicated to documentation of microscopic results with a clear focus on maximum colour fidelity and fast live image.
It does not require a computer for standard operation, as it comes with softwares that will allow you to use it by simply connecting it to a screen through its HDMI port, and with a mouse connected to the USB port of the camera.
| Model | Moticam 4000X |
| Sensor type | CMOS |
| Sensor size | 1/2.8" |
| Light sensitive area | Diagonal 6.4mm |
| Capture resolution | 8MP (3864x2228 pixels) |
| Pixel Size | 1.45 x 1.45μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Interface and key functions | |
| USB 2.0 | Female Type-A Port - Computer, Mouse Support |
| USB 3.0 | Female Type-A Port - Computer, UVC |
| HDMI | 3840x2160 @ 30HZ |
| Network port | 100Mbps RJ45 (no indicator) |
| SD card | SD2.0, SD3.0 support (SDHC, SDXC card support) |
| Power button | On/Off switch |
| WIFI reset button | Long press to reset |
| LED indicator | Red light: power indicator, always on when power on standby Green light: power on indicator, blinking when power on, always on after power on |
| Video encoding | |
| WIN/MAC | MJPG/H264 |
| USB 2.0 and USB 3.0 | 3840x2160 @ 30fps 1920x1080 @ 30fps 960x540 @ 30fps |
| *Frames per second under optimal lighting conditions and in compliance with computer technical requirements. | |
