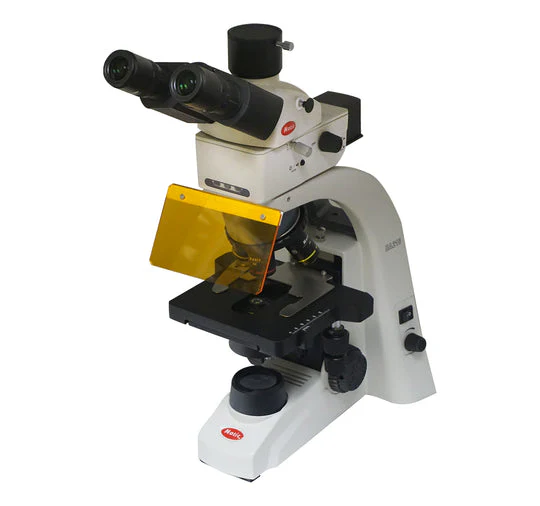

Motic BA210E W/ EPI-LED S Fluorescence Microscope

Product image 1
1 / 4

Motic BA210E W/ EPI-LED S Fluorescence Microscope

Motic’s Epi-LED S modules for BA210E include a 3W LED light source, combined with a suitable filter combination (FITC fluorescein or TRITC Rhodamine or Auramine O). The module is placed as an add-on between microscope stand and eyepiece tube. A fast change from Bright field to Fluorescence and vice versa is possible by moving the LED module back and forth. A change in excitation is possible by simply exchanging the compact illumination module. The integrated IR-sensor detects the user and turns off the Fluorescence automatically when the microscope is left, again considering less experienced users. Please see the downloads section below to select the filter cube combination.

    Specifications

    Model BA210E Binocular BA210E Trinocular
    Observation tube Binocular head, Siedentopf type Trinocular head, Siedentopf type
    Optical system Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®)
    Condenser Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
    Darkfield Optional slider Optional slider
    Diaphragm Iris diaphragm Iris diaphragm
    Diopter adjustment On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter
    Eyepieces Widefield N-WF10X/20mm with diopter adjustment Widefield N-WF10X/20mm with diopter adjustment
    Filter holder On top of the illuminator with fixing cap On top of the illuminator with fixing cap
    Fine focus precision 2µm 2µm
    Fluorescence Optional LED Optional LED
    Focus mechanism Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment
    Focusing stroke 20mm 20mm
    Illumination interchangeability Quartz halogen 6V/30W or LED 3W Quartz halogen 6V/30W or LED 3W
    Inclination 30° inclined, 360° rotating 30° inclined, 360° rotating
    Interpupillary distance 55-75mm 55-75mm
    Nosepiece Reversed quadruple Reversed quadruple
    Objective classification CCIS® EC Plan Achromatic, DIN CCIS® EC Plan Achromatic, DIN
    Objective mounting thread W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard)
    Objectives 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
    Phase contrast Optional slider Optional slider
    Polarization Optional add-on Optional add-on
    Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder Mechanical stage with built-in low position rackless coaxial stage control and sample holder
    Stage size 150x150mm 150x150mm
    Stand type Upright Upright
    Standard contrast technique Brightfield Brightfield
    Transmitted illumination Quartz halogen 6V/30W with intensity control Quartz halogen 6V/30W with intensity control
    Travel range X&Y 80x30mm 80x30mm
    Upper limit stop Upper limit stop preset but adjustable Upper limit stop preset but adjustable
    Transformer Internal Internal
    Power supply 100-240V (CE) 100-240V (CE)
    Accessories included Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
    Dimensions LxWxH 360x220x395mm 360x220x395mm
    Weight Net 7.2kg 7.2kg
