A Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0 (With 25mm reticle mount). Designed for EMZ, EMT, EMF model series but not compatible with High Eyepoint Models.

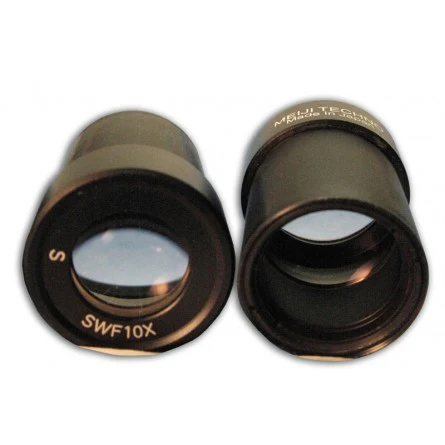

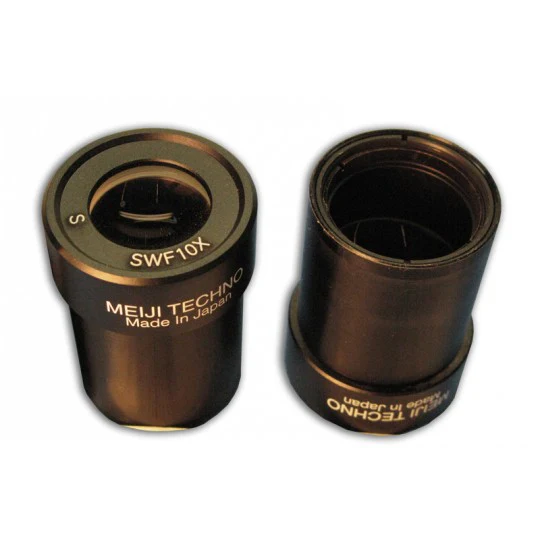

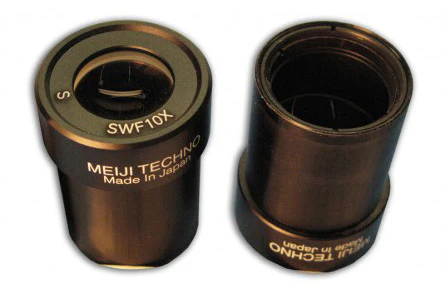

MA502 Super Widefield Eyepiece 10X designed for EMZ, EMT, EMF models
MA502 Super Widefield Eyepiece 10X (pair) Field No. 26.0, Eye Relief 16.0, Focal Length 25.0 with 30.5mm O.D. (Outer Diameter), with 25mm reticle mount. This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models EMZ (Zoom Series), EMT (Turret Series), EMF (Fixed Series), not compatible with High Eyepoint Models.

OPTIONAL EYEPIECES FOR EMZ, EMF, EMT SERIES (30.5MM O.D.)
 MA501 Super Widefield Eyepiece 5X (paired)
 MA718 Super Widefield Eyepiece 7.5X (paired)
 MA502 Super Widefield Eyepiece 10X (paired) (With 25mm reticle mount)
 MA520 Super Widefield Eyepiece 12.5X (paired) (With 25mm reticle mount)
 MA503 Super Widefield Eyepiece 15X (paired) (With 25mm reticle mount)
 MA535 Super Widefield, High Eyepoint HSWF 15X Eyepiece (paired) (With 19mm reticle mount)
 MA504 Super Widefield Eyepiece 20X (paired) (With 25mm reticle mount)
 MA521 Super Widefield Eyepiece 30X (paired)
 MA519 Super Widefield Focusing Eyepiece 10X (each) (With 25mm reticle mount)
 MA600 Rubber Eyeshields for SWF eyepieces (paired) (Fits 30.5mm O.D. eyepieces)

OPTIONAL EYEPIECE MICROMETERS: (25MM) DIAMETER
FOR USE WITH MA102, MA103, MA104, MA502, MA520, MA503, MA504, MA519, MA730, MA817, MA859 & MA1025 EYEPIECES
 MA523 Cross-line reticle, 25mm diameter
 MA506 10mm divided into 100 units, 25mm diameter
 MA509 5mm divided into 100 units, 25mm diameter
 MA524 10mm square into 400 parts, 0.5mm square, 25mm diameter
 MA510 10mm square into 100 parts, 1.0mm square, 25mm diameter
 MA542 Cross-line with 0.1mm graduations, 25mm diameter
 MA541 Photo framing reticle for SWF10X eyepiece, 25mm diameter
 MA738 Eyepiece micrometer for grain sizing steel, 25mm diameter
(For use with compound metallurgical microscopes)

OPTIONAL EYEPIECE MICROMETERS: (19MM) DIAMETER
FOR USE WITH MA212, MA213, MA480, MA406, MA408, MA413, MA535, MA732, MA734, MA818, MA819 & MA1026 EYEPIECES
 MA223 0.50” divided into 50 units, 19mm diameter
 MA279 Cross-line reticle, 19mm diameter
 MA280 10mm divided into 100 units, 19mm diameter
 MA281 5mm divided into 100 units, 19mm diameter
 MA282 10mm square into 400 parts, 0.5mm square, 19mm diameter
 MA283 10mm square into 100 parts, 1.0mm square, 19mm diameter
 MA539 Cross-line with 0.1mm graduations, 19mm diameter
 MA253 Cross-line with dotted lines, 19mm diameter
 MA254 Walton & Beckett reticle, 19mm diameter

Product Information:
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Package: Ships in 6” x 6” x 6” Package
Weight: 0.3 lbs
