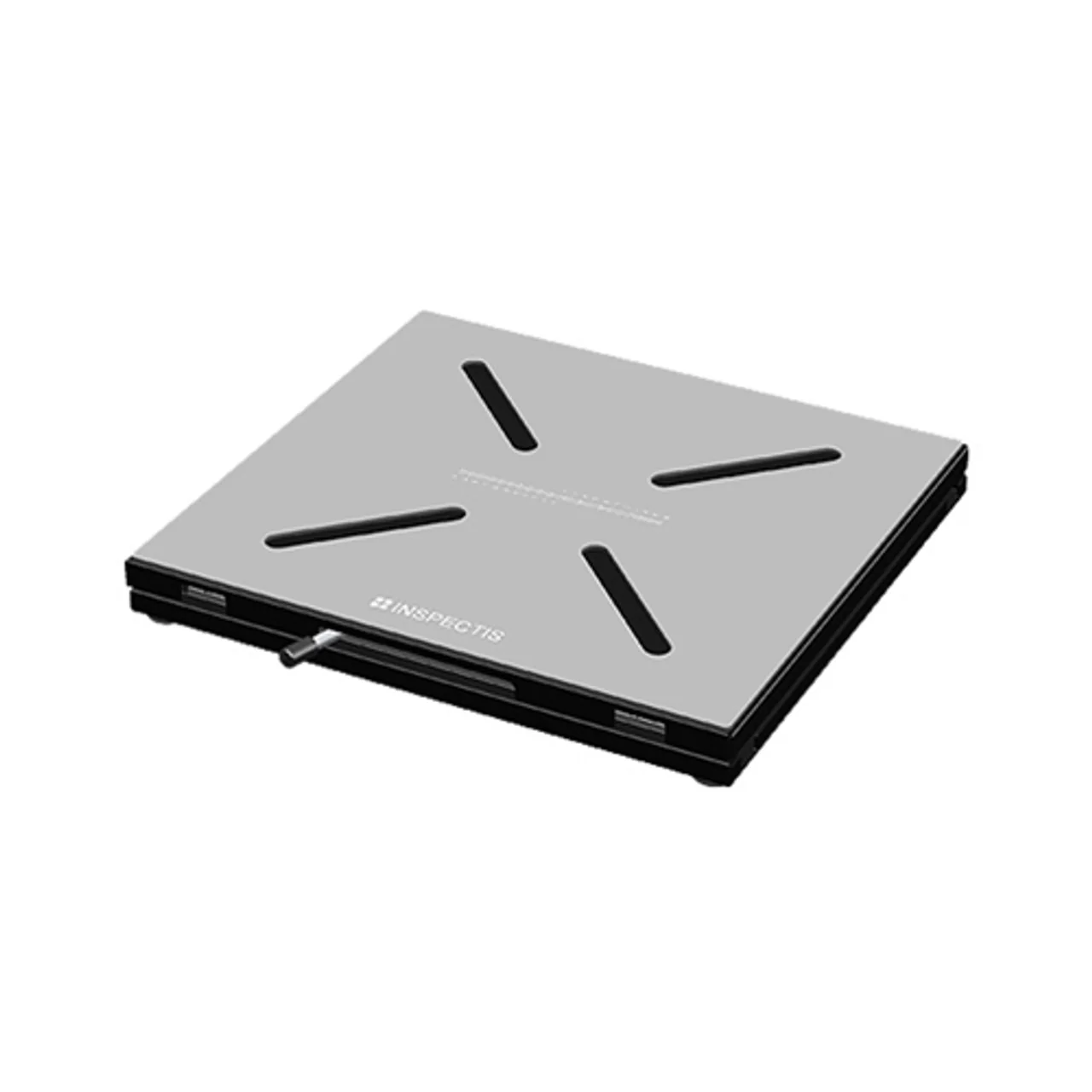

The Inspectis Microscope XY Floating Board with Position Lock (HD‑028‑L) is a high‑performance mechanical stage accessory designed to provide smooth lateral movement and secure positioning of samples during microscope inspection workflows. This anti‑static XY floating board delivers a large travel range for X and Y adjustments — ideal for inspecting PCBs, assemblies, and other flat parts — while the built‑in position locking mechanism allows you to fix the board in place once the sample is positioned.

The working surface is covered with a high‑friction, anti‑static mat that helps keep components stable under the microscope, and four slots provide mounting points for optional magnetic pegs or custom fixtures. Manufactured in Sweden to professional standards, this XY stage is suited for industrial quality control, electronics inspection, and precision laboratory tasks.

Specifications

• Part Number / SKU: HD‑028‑L

• Travel Range: ± 160 mm (X) × ± 96 mm (Y)

• Board Size: 290 × 270 mm (approximate)

• Height: ~34 mm

• Weight: ~2.5 kg

• Surface: High‑friction, anti‑static mat

• Slots: 4 mounting slots for magnetic pegs or fixtures

• ESD Protection: Yes

• Return Policy: Non‑returnable

• Delivery Lead Time: ~3–4 weeks

• Country of Origin: Sweden

Features & Benefits

• Large XY Travel Range: Smooth lateral movement across ± 160 mm X and ± 96 mm Y allows for extensive sample positioning and scanning.

• Position Locking Mechanism: Lock lever secures the board once positioned to prevent unintended movement.

• Anti‑Static High‑Friction Surface: Keeps samples stable during inspection and reduces static buildup.

• Flexible Mounting: Four integrated slots support optional magnetic pegs or custom holders to secure specimens.

• Industrial‑Grade Build: Made in Sweden to withstand rigorous usage in quality control, manufacturing, and laboratory environments.
