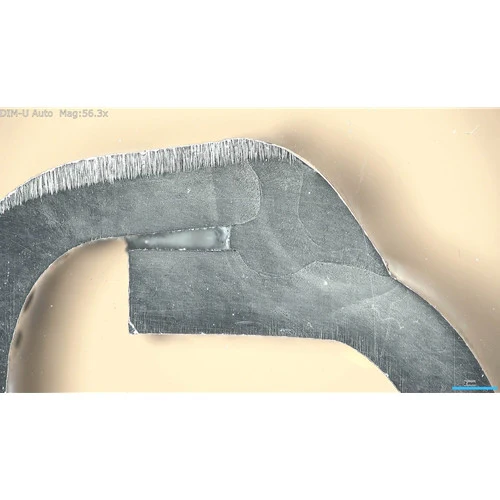

The Inspectis Microscope WELDinspect FHD Digital Inverted Microscope (WELD-DIM-F) is a robust all-in-one industrial inspection system designed for weld bead measurement, analysis, and documentation. Featuring a large field of view, auto-focus motorized zoom lens, and integrated illumination, this inverted digital microscope provides clear, high-quality inspection of samples placed directly on the aperture window — eliminating the need for eyepiece viewing and reducing operator fatigue.

Incorporating the Inspectis Basics imaging software, the system supports a range of workflow tools including digital image capture, calibrated measurement, annotation, object counting, overlay graphics, and video recording — making it well suited for welding analysis, production verification, and quality control workflows.

Specifications

• Part Number / SKU: WELD-DIM-F

• Magnification (On-Screen): ~7× – ~205×

• Field of View: ~3 mm to ~84 mm

• Camera: 2.1 MP Full HD digital camera for image & video capture

• Pixel Size: 2.5 µm × 2.5 µm

• Auto-Focus: High-resolution motorized zoom with autofocus

• Illumination: Built-in large-aperture white LED ring light with diffuser and crossed polarizer filter set

• Controls: Zoom, Iris, Manual/Auto Focus, Manual/Auto Brightness, Contrast, Gain, Clarity, White Balance, NIR-mode

• Software Features: Live image, freeze frame, digital zoom, calibrated measurement, lens distortion correction, flip, distance measurement, annotation, object count, overlay crosshair/grid, saved image folders

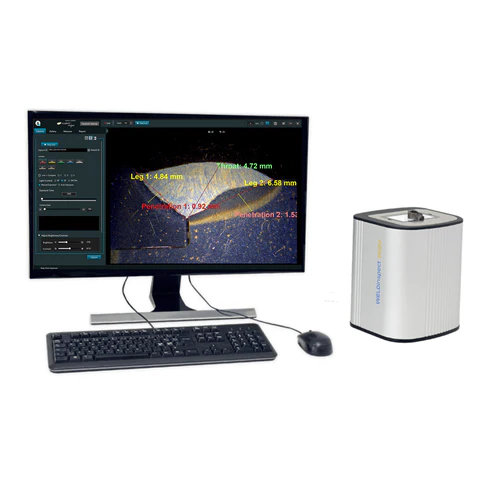

• Computer / Monitor: Includes computer with 21″ HD monitor

• Input / Output: 5P MiniDin power input, HDMI video output, 8P MiniDin communication

• Environmental Protection: Hermetically sealed camera housing with ESD protection and five hardened glass windows

• Manufactured: Sweden

• Return Policy: This item is non-returnable

• Lead Time: Typically 3–4 weeks for delivery

Features & Benefits

• Large Field of View & Flexible Magnification: Covers a broad range of inspection scales — from overview imaging to detailed weld bead analysis.

• Motorized Zoom with Autofocus: Smooth and automatic focusing enhances operator efficiency and reduces repetitive adjustments.

• Integrated LED Illumination: Large aperture LED ring light with diffuser and crossed polarizer enhances contrast and reduces glare for accurate imaging.

• Ergonomic Inverted Design: Samples are examined directly on the aperture window, eliminating eye strain and improving comfort during extended use.

• Reliable Image & Measurement Software: Inspectis Basics software supports measurement, annotation, and reporting — ideal for QC and documentation workflows.

• Built for Industrial Use: Robust sealed housing and ESD protection ensure dependable performance in demanding inspection environments.
