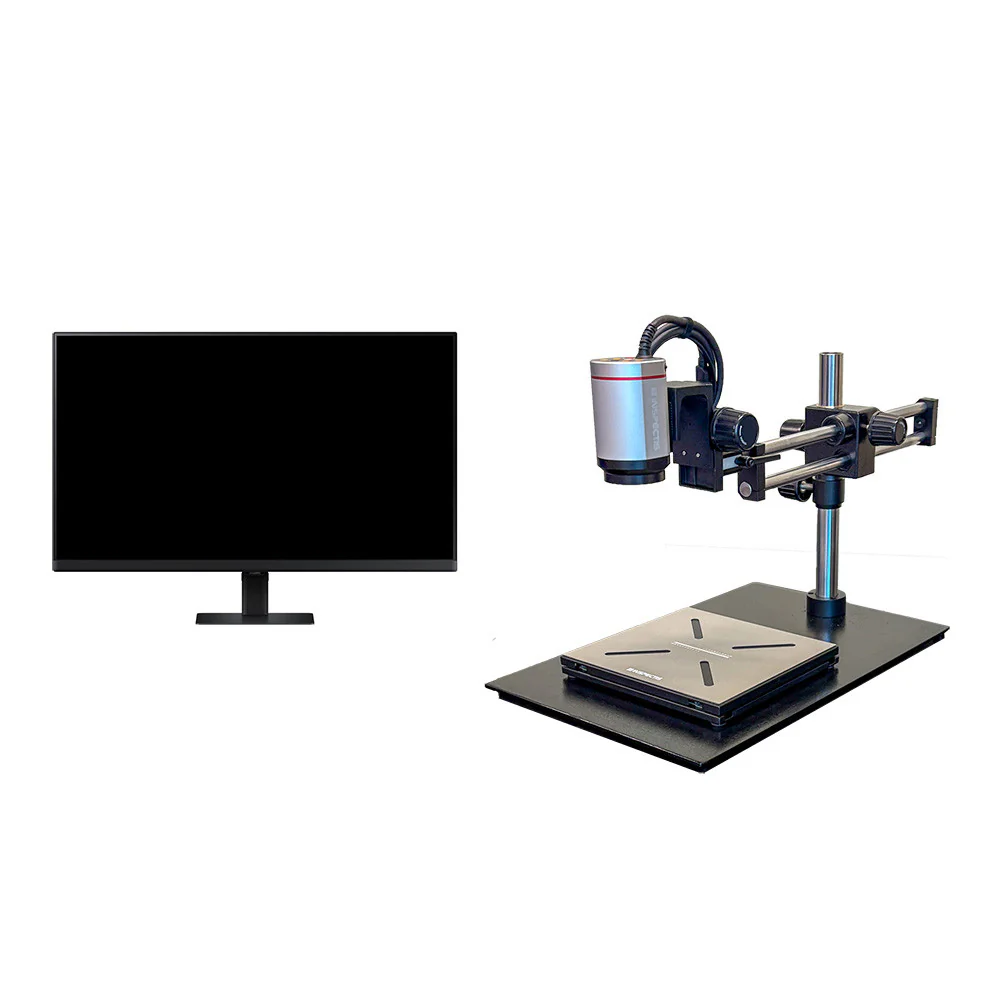

The Inspectis Microscope F30s HD Ball Bearing Boom Digital Microscope with 27″ Monitor is a rugged industrial inspection system built around the F30s HD digital microscope featuring a 30:1 motorized zoom lens housed in precision‑built aluminum. This version includes a ball bearing boom stand for exceptionally smooth and stable movement across the workspace, paired with a large 27″ HD monitor for enhanced viewing and analysis.

Designed and manufactured in Sweden, this complete inspection station combines smooth mechanical control, flexible positioning, and high‑quality optics — ideal for electronics inspection, PCB evaluation, quality assurance, and advanced visual documentation workflows.

Specifications

• Part Number / SKU: F30s‑ESD‑LB‑BB‑MON27

• Video Output: Full HD 1080p @ 60 fps (switchable to 1080p @ 50 fps)

• Imager: 2 MP progressive scan CMOS (1920 × 1080)

• Lens: Motorized 30:1 zoom with autofocus, iris control, and pre‑calibrated optics

• Working Distance: ~230 mm

• Controls: Iris, Zoom, Auto Focus On/Off, White Balance; optional pedal and advanced remote available

• Illumination: LED ring light with diffuser

• Stand: Ball bearing boom stand with 400 mm (15.7″) vertical column and ESD‑protected base (400 × 600 mm)

• Monitor: 27″ HD display

• Capture Device: USB image and video capture device included

• Input / Output: HDMI video output; 5P MiniDin power input; 8P MiniDin communication

• Manufactured: Sweden

• Return Policy: Item is non‑returnable

Features & Benefits

• Ball Bearing Boom Stand: Provides ultra‑smooth movement and precise positioning across the inspection area, improving operator ergonomics and repeatability.

• High‑Quality Optics: Motorized 30:1 zoom optics with auto‑focus and iris control allow flexible magnification from overview to detailed inspection.

• Large 27″ Monitor: Full HD display offers generous viewing area for detailed inspection, collaboration, and analysis.

• Industrial Reliability: Sealed camera housing with built‑in ESD protection and robust aluminum construction ensures durability in production environments.

• Documentation Support: USB image/video capture device simplifies saving inspection results for reports and traceability.
