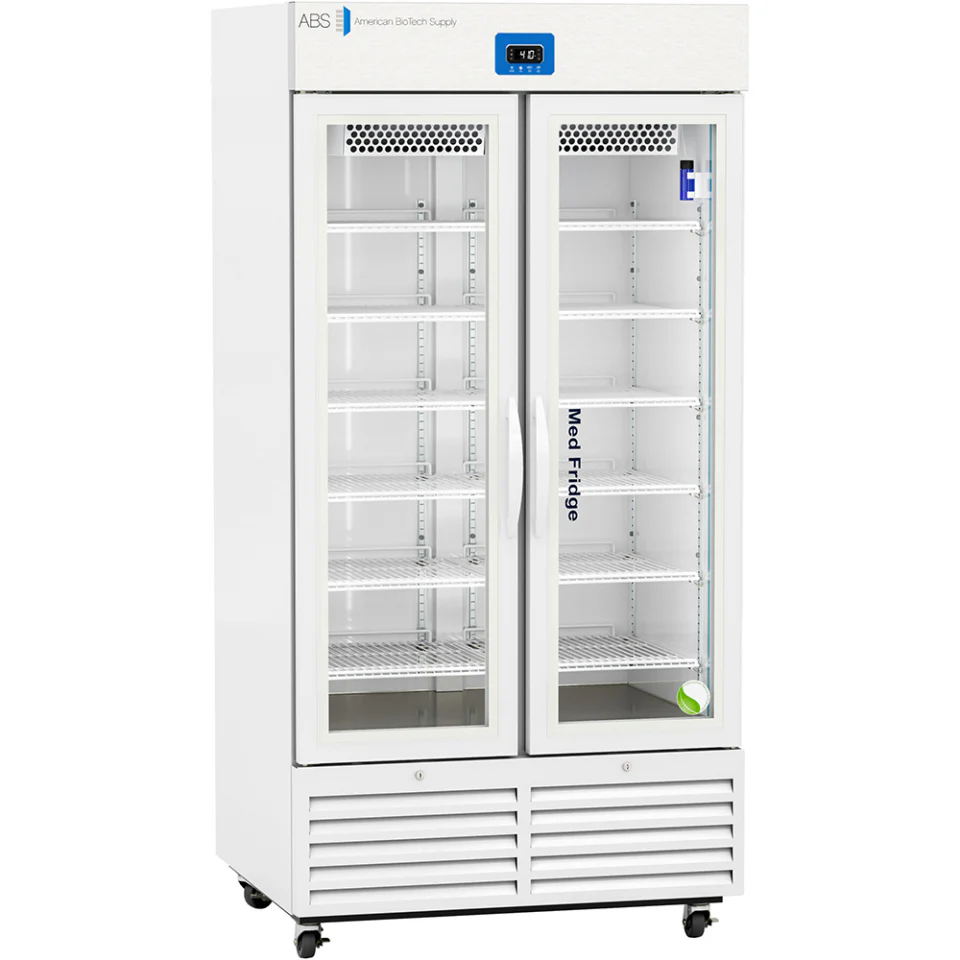

ABS 36 Cu. Ft. Premier Glass Door Laboratory Refrigerator PH-ABT-VS-36G
ABS 36 Cu. Ft. Premier Glass Door Laboratory Refrigerator PH-ABT-VS-36G
These premier pharmacy refrigerators are engineered with variable speed technology for exceptional efficiency and performance in clinical and research environments. They feature precise microprocessor temperature control and variable speed compressor technology. Enjoy low energy consumption and natural hydrocarbon refrigerants for cost-savings and energy efficiency. Security and monitoring features include keyed door locks and comprehensive alarms with remote alarm contacts. The cabinet is built with durable powder-coated steel, self-closing glass doors, safety-shielded LED lighting, and adjustable interior shelving to enhance your workflow. This model delivers optimal temperature stability and includes a 2-year parts and labor warranty with a generous 7-year warranty on the compressor. These premier refrigerators are designed to increase performance and efficiency in your clinical setting.
Description
| Storage capacity (cu. ft) | 36 Cu. Ft. |
| Door | Two (2) swing glass doors, self-closing, magnetic door gasket |
| Shelves | Twelve (12) adjustable shelves (adjustable in Ā½ā increments) |
| Mounting and Installation | Swivel casters ā locking front casters |
| External probe access | 3/4ā³ probe access port on rear wall |
| Insulation | Cabinet is foamed-in-place with EPA compliant high-density urethane foam |
| Interior lighting | LED interior lights are safety shielded and switch controlled |
| Airflow Management | Forced draft air circulation, patented air flow technology |
| Exterior materials | Cabinet is foamed-in-place with EPA compliant high-density urethane foam |
| Access control | Keyed door lock |
| General warranty | Two (2) year parts and labor warranty |
| Compressor warranty | Seven (7) year compressor warranty |
| Product Weight (lbs) | 355 |
| Shipping Weight (lbs) | 405 |
| Rated Amperage | 3 Amps |
| Power Plug/Power Cord | NEMA 5-15 plug, vaccine storage power cord warning label |
| Facility Electrical Requirement | 110 ā 120V AC, 15A breaker, NEMA 5-15 receptacle |
| Agency Listing and Certification | ETL, C-ETL listed. Meets or exceeds ENERGY STARĀ® v2.0 for Laboratory Refrigerators. Official listing pending ā see energystar.gov |
Performance
| Maximum temperature variation (Cabinet air) | +/- 1.5Ā° C |
| Stability (Simulator ballast) | +/- 0.3Ā° C |
| Energy Consumption (kWh/day) | <2.2 KWh/dayĀ *meets ENERGY STARĀ® v2.0 for Laboratory Refrigerators |
| Average Heat Rejection (BTU/hr) | <570 BTU/h |
| Pull down time to nominal operating temp | < 40 min (empty) |
| Noise Pressure Level (dBA) | 40 dBA or less installed |
| Compressor | Hermetic, variable speed |
| Refrigerant | EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant) |
| Condenser | Tube and grid, high efficiency fan forced air |
| Evaporator | Fin and tube, high efficiency fan forced air |
| Defrost | Cycle Defrost |
| Performance Notes | Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.Ā Product loading, door openings, and ambient conditions will affect performance.Ā Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings |
Temp Controller
| Controller technology | Microprocessor temperature controller with variable frequency compressor control, CĀ°/FĀ° switchable, resolution is 0.1Ā° C/0.2Ā° F |
| Battery Backup | For controller temperature display and alarms only, no cooling active |
| Display technology | Ā Digital temperature display |
| Adjustable Temperature Range | 36Ā°F to 46Ā°F (2Ā°C to 8Ā°C) Calibrated using a NIST traceable device, certificate included |
| Digital Communication | Non-applicable |
| External alarm connection | Remote alarm contacts |
| Alarms | Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm |
| Included Accessories | Pharmacy refrigerator/freezer toolkit |
| Display Probe | Product simulator bottle with glass bead media |
| Disclaimers | Refrigerator requires a minimum 2ā of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) ā improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure |
Ā
