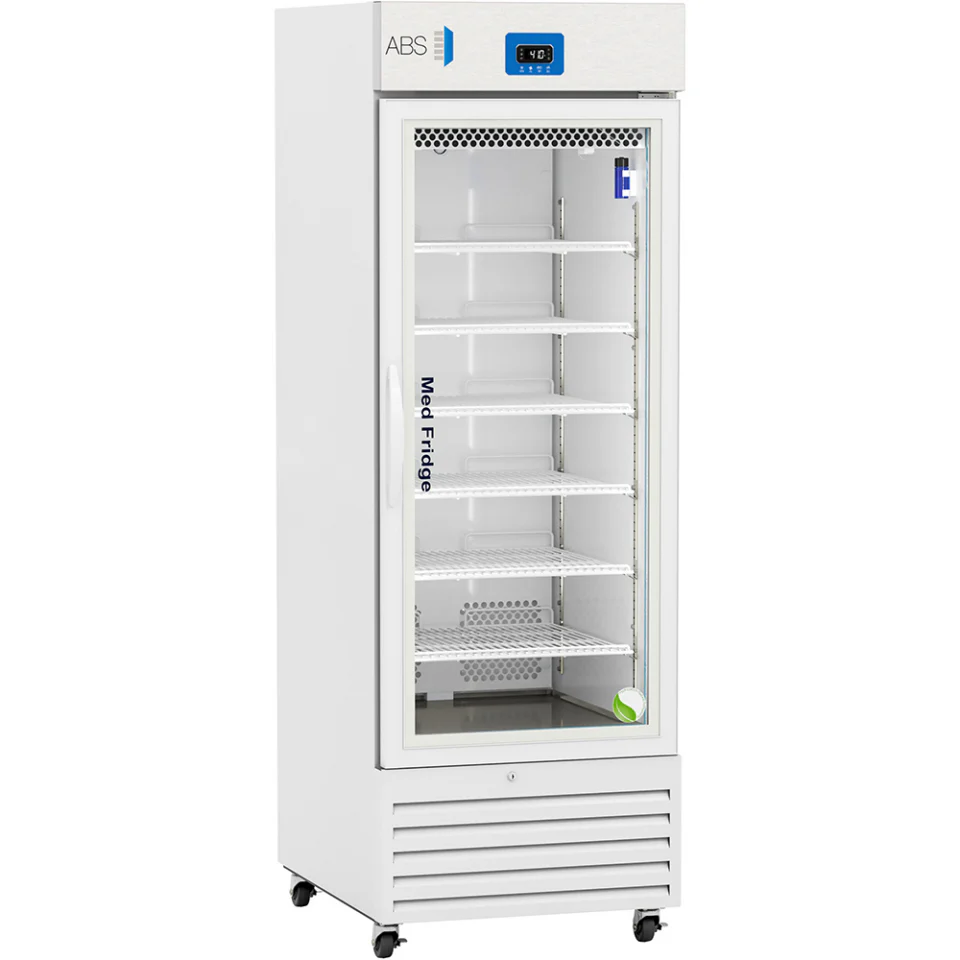

ABS 23 Cu. Ft. Premier Glass Door Pharmacy Refrigerator PH-ABT-VS-23G

Protect your valuable pharmaceuticals with the PH-ABT-VS-23G premier pharmacy refrigerator, engineered to maintain medications at optimal 2°C to 8°C temperatures with unmatched precision. This 23 cubic foot unit combines variable speed technology with natural R600a refrigerant to deliver exceptional energy efficiency under 1.2 KWh/day while meeting ENERGY STAR® v2.0 standards. The result is significant cost savings on your utility bills while maintaining the highest standards of medication storage safety.

Your pharmacy operations benefit from the PH-ABT-VS-23G’s intelligent design featuring a microprocessor controller with comprehensive alarm systems that safeguard against temperature excursions. The digital display allows easy monitoring while remote alarm contacts enable integration with your facility’s monitoring systems for 24/7 protection. With audible and visual alarms for high/low temperature, door ajar, power failure, and sensor errors, you’ll have complete confidence in your cold chain integrity.

Designed for real-world pharmacy environments, the PH-ABT-VS-23G features durable powder coated steel construction with high-density urethane foam insulation and a self-closing glass door that maintains consistent temperatures even during frequent access. The six adjustable shelves accommodate various medication sizes while swivel casters with locking front wheels allow easy cleaning and repositioning. Safety-shielded LED lighting illuminates contents clearly, and the included pharmacy toolkit provides everything needed for optimal operation. With a 2-year comprehensive warranty and 7-year compressor coverage, the PH-ABT-VS-23G delivers reliable performance you can count on.

Key Features
• 23 cubic foot capacity optimized for pharmacy storage needs
• Maintains 2°C to 8°C with ±0.3°C stability using simulator probe
• Variable speed compressor with eco-friendly R600a refrigerant
• Digital microprocessor controller with remote alarm contacts
• ENERGY STAR® v2.0 qualified with under 1.2 KWh/day consumption
• ETL and C-ETL listed for safety and performance assurance

Benefits
• Reduce energy costs significantly with industry-leading efficiency under 1.2 KWh/day
• Ensure medication safety with precise ±1.5°C temperature control throughout cabinet
• Minimize disruption with whisper-quiet 40 dBA operation in patient care areas
• Maximize storage flexibility using six shelves adjustable in half-inch increments
• Protect inventory 24/7 with comprehensive alarms and remote monitoring capability
• Save space with compact 26.875″ width while maintaining 23 cubic feet capacity
• Enjoy peace of mind with 7-year compressor warranty backing your investment
• Maintain compliance easily with included NIST traceable calibration certificate

Description

Storage capacity (cu. ft)	23 Cu. Ft.
Door	One (1) swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves	Six (6) adjustable shelves (adjustable in ½” increments)
Mounting and Installation	Swivel casters – locking front casters
External probe access	3/4″ probe access port on rear wall
Insulation	Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Interior lighting	LED interior lights are safety shielded and switch controlled
Airflow Management	Forced draft air circulation, patented air flow technology
Exterior materials	Cabinet is foamed-in-place with EPA compliant high-density urethane foam
Access control	Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
General warranty	Two (2) year parts and labor warranty
Compressor warranty	Seven (7) year compressor warranty
Product Weight (lbs)	274
Shipping Weight (lbs)	327
Rated Amperage	3 Amps
Power Plug/Power Cord	NEMA 5-15 plug, vaccine storage power cord warning label
Facility Electrical Requirement	110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification	ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov

Performance

Maximum temperature variation (Cabinet air)	+/- 1.5° C
Stability (Cabinet air)	+/- 0.3° C
Energy Consumption (kWh/day)	<1.2 KWh/day  *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
Average Heat Rejection (BTU/hr)	<320 BTU/h
Pull down time to nominal operating temp	< 35 min (empty)
Noise Pressure Level (dBA)	40 dBA or less installed
Compressor	Hermetic, variable speed
Refrigerant	EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser	Tube and grid, high efficiency fan forced air
Evaporator	Fin and tube, high efficiency fan forced air
Defrost	Cycle Defrost
Performance Notes	Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes.  Product loading, door openings, and ambient conditions will affect performance.  Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings

Temp Controller

Controller technology	Microprocessor with color touchscreen (8in) input and display, C°/F° switchable, resolution is 0.1° C/0.2° F
Battery Backup	For controller temperature display and alarms only, no cooling active
Display technology	Digital temperature display
Adjustable Temperature Range	36°F to 46°F (2°C to 8°C) Calibrated using a NIST traceable device, certificate included
Digital Communication	Non-applicable
External alarm connection	Remote alarm contacts
Alarms	Audible and visual high/low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, door ajar alarm
Display Probe	Product simulator bottle with glass bead media
Included Accessories	Pharmacy refrigerator/freezer toolkit
Disclaimers	Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
